ACPL-790A-000E

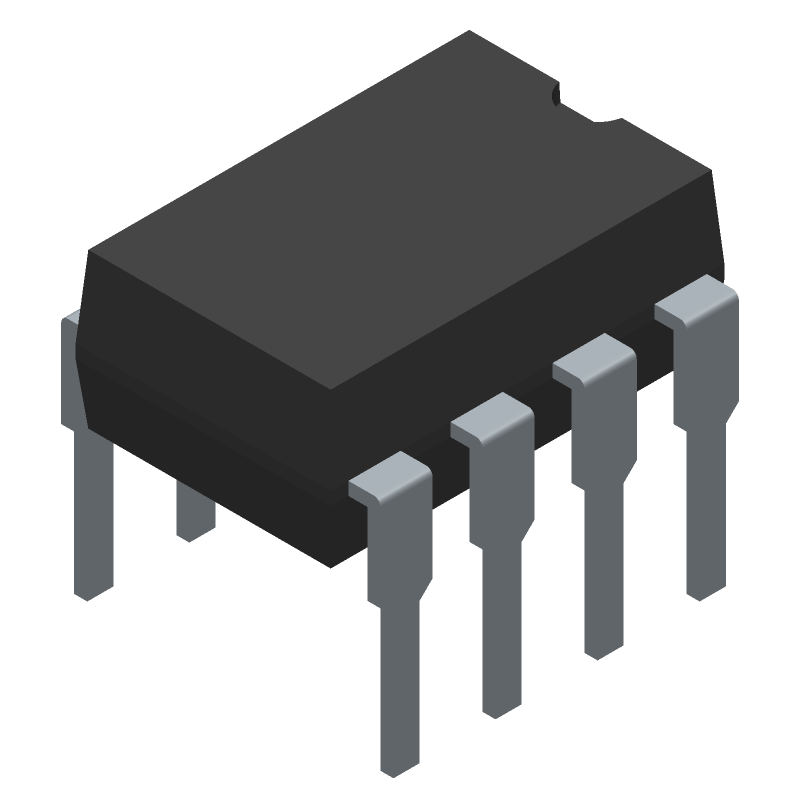

ACPL-790A-000E图片1
ACPL-790A-000E图片2
ACPL-790A-000E图片3
ACPL-790A-000E图片4
ACPL-790A-000E概述

光隔离放大器 Precision Iso-Amp

The ACPL-790B/790A/7900 isolation amplifiers were designed for current and voltage sensing in electronic power converters in applications including motor drives and renewable energy systems.

In a typical motor drive implementation, current flows through an external resistor and the resulting analog voltage drop is sensed by the isolation amplifier. A differential output voltage that is proportional to the current is created on the other side of the optical isolation barrier.


立创商城:
ACPL 790A 000E


贸泽:
光隔离放大器 Precision Iso-Amp


艾睿:
OptoCoupler 1-CH 8-Pin PDIP Tube


安富利:
OptoCoupler 1-CH 8-Pin PDIP Tube


ACPL-790A-000E中文资料参数规格
技术参数

输出电压 2.50 V

供电电流 13.0 mA

输入电流 400 mA

带宽 200 kHz

封装参数

安装方式 Surface Mount

引脚数 8

封装 DIP-8

外形尺寸

封装 DIP-8

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买ACPL-790A-000E
型号: ACPL-790A-000E
制造商: AVAGO Technologies 安华高科
描述:光隔离放大器 Precision Iso-Amp
替代型号ACPL-790A-000E
型号/品牌 代替类型 替代型号对比

ACPL-790A-000E

AVAGO Technologies 安华高科

当前型号

当前型号

ISO124P

德州仪器

功能相似

ACPL-790A-000E和ISO124P的区别

AMC1200SDUBR

德州仪器

功能相似

ACPL-790A-000E和AMC1200SDUBR的区别

ISO122JP

德州仪器

功能相似

ACPL-790A-000E和ISO122JP的区别
