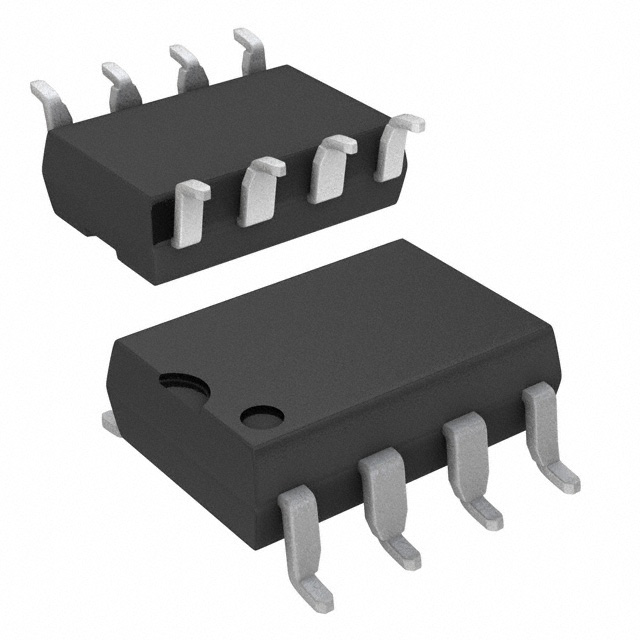

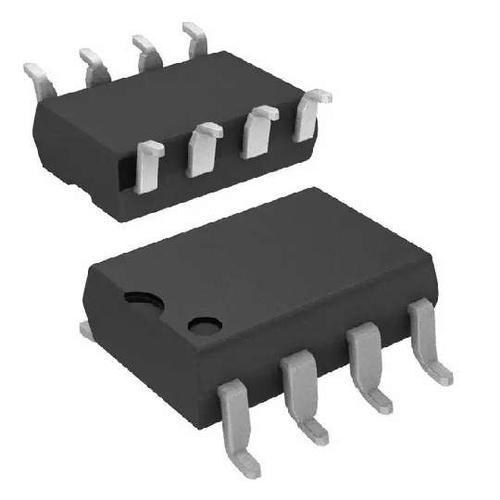

ACPL-790A-300E

OptoCoupler 1CH 8Pin PDIP SMD Tube

The ACPL-790B/790A/7900 isolation amplifiers were designed for current and voltage sensing in electronic power converters in applications including motor drives and renewable energy systems.

In a typical motor drive implementation, current flows through an external resistor and the resulting analog voltage drop is sensed by the isolation amplifier. A differential output voltage that is proportional to the current is created on the other side of the optical isolation barrier.

立创商城:
ACPL 790A 300E

艾睿:
OptoCoupler 1-CH 8-Pin PDIP SMD Tube
