ACPL-M43T-500

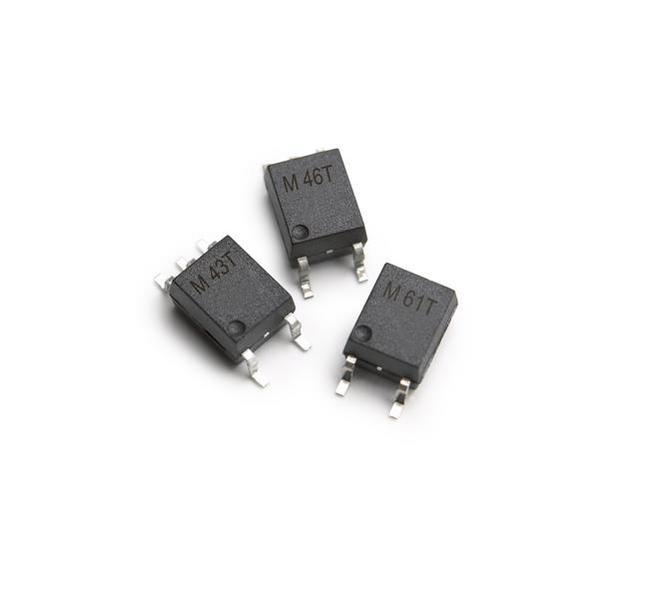

ACPL-M43T-500图片1
ACPL-M43T-500图片2
ACPL-M43T-500图片3
ACPL-M43T-500概述

Optocoupler DC-IN 1CH Transistor With Base DC-OUT 5Pin SOIC T/R

Description

The  ACPL-M43T  is  a  single  channel,  high  temperature, high  CMR,  high  speed  digital  optocoupler  in  a  five  lead miniature  footprint  specifically  used  in  the  automotive applications. The  SO-5  JEDEC  registered  MO-155  package outline does not require “through holes” in a PCB. This package occupies approximately one-fourth the footprint area of the standard dual-in-line package. The lead profile is designed to be compatible with standard surface mount processes.

Features

•  High Temperature and Reliability IPM Driver for Automotive Application.

•  30 kV/µs High Common-Mode Rejection at VCM= 1500 V typ

•  Compact, Auto-Insertable SO5 Packages

•  Wide Temperature Range: -40°C ~ 125°C

•  High Speed: 1MBd Typ

•  Low LED Drive Current: 10mA typ

•  Low Propagation Delay: 300ns typ

ACPL-M43T-500中文资料参数规格
技术参数

正向电压 1.5 V

耗散功率 100 mW

输入电流Min 20 mA

耗散功率Max 100 mW

封装参数

安装方式 Surface Mount

封装 SO

外形尺寸

封装 SO

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买ACPL-M43T-500
型号: ACPL-M43T-500
制造商: AVAGO Technologies 安华高科
描述:Optocoupler DC-IN 1CH Transistor With Base DC-OUT 5Pin SOIC T/R
替代型号ACPL-M43T-500
型号/品牌 代替类型 替代型号对比

ACPL-M43T-500

AVAGO Technologies 安华高科

当前型号

当前型号

ACPL-M43T-000E

安华高科

类似代替

ACPL-M43T-500和ACPL-M43T-000E的区别

ACPL-M43T-500E

安华高科

类似代替

ACPL-M43T-500和ACPL-M43T-500E的区别
