超快软恢复整流二极管 ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

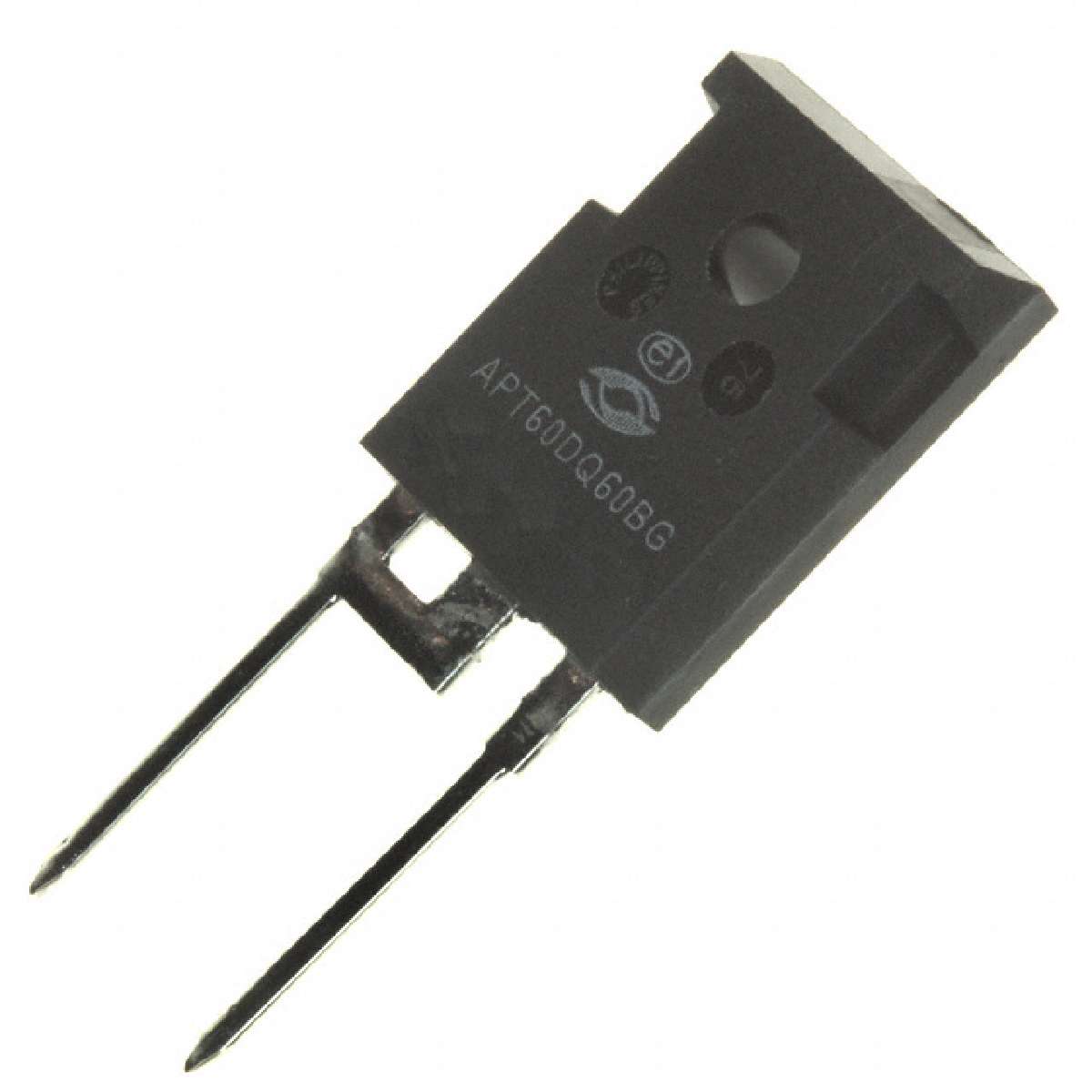

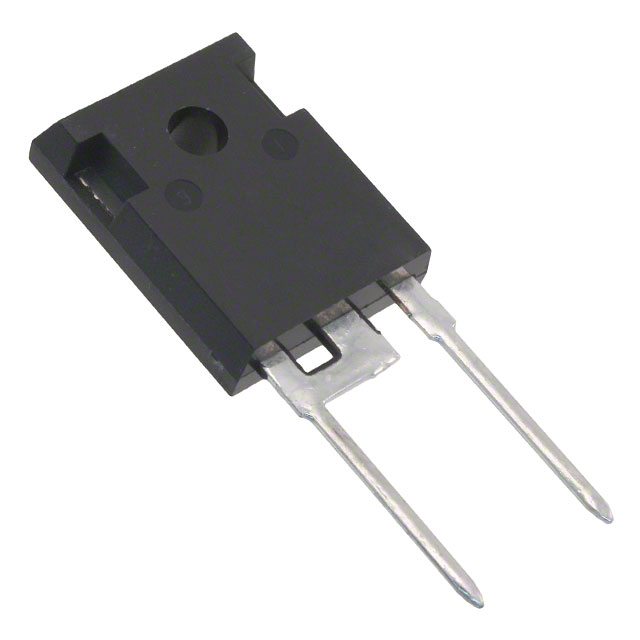

APT60DQ60 Series 600 V 60 A Ultrafast Soft Recovery Rectifier Diode - TO-247
贸泽:
整流器 Fast Recovery Epitaxial Diode - DQ
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode APT60DQ60BG rectifier from Microsemi. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 175 °C. Its peak non-repetitive surge current is 600 A, while its maximum continuous forward current is 60 A.
富昌:
APT60DQ60 Series 600 V 60 A Ultrafast Soft Recovery Rectifier Diode - TO-247
Chip1Stop:
Diode Switching 600V 60A 3-Pin3+Tab TO-247
TME:
Diode: rectifying; THT; 600V; 60A; Package: tube; TO247AC Modified
Verical:
Diode Switching 600V 60A Automotive 2-Pin2+Tab TO-247 Tube
Win Source:
DIODE GEN PURP 600V 60A TO247
额定电压DC 600 V
额定电流 60.0 A
输出电流 ≤60.0 A
正向电压 2.4V @60A
极性 Standard
反向恢复时间 35 ns
正向电流 60000 mA
正向电压Max 2.4V @60A
正向电流Max 60000 mA
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 TO-247-2
长度 21.46 mm
宽度 16.26 mm
高度 5.31 mm
封装 TO-247-2
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
