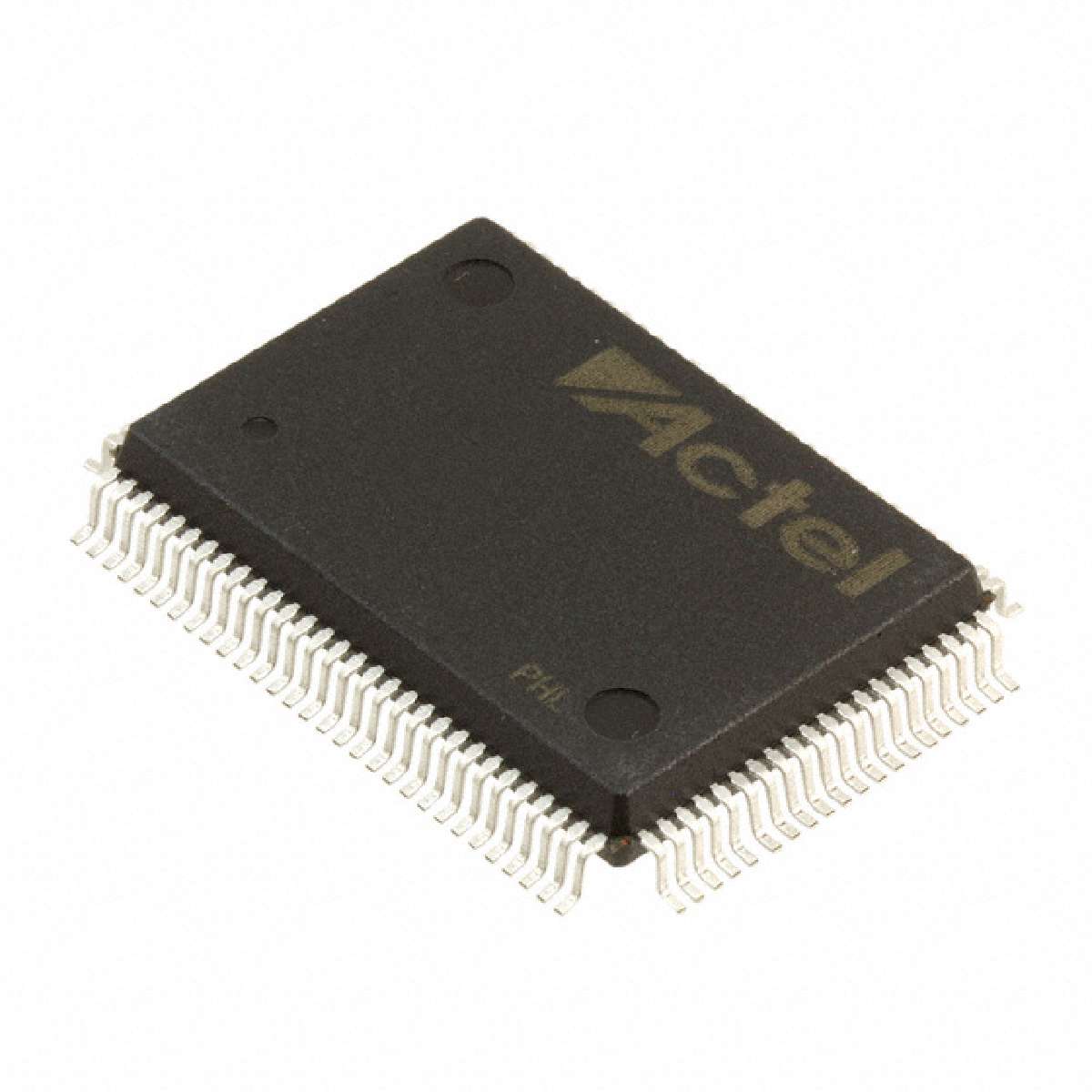

A42MX09-FPQG100

FPGA - 现场可编程门阵列 A42MX09-FPQG100 LEAD FREE

40MX and 42MX FPGA Families

Features

High Capacity

• Single-Chip ASIC Alternative

• 3,000 to 54,000 System Gates

• Up to 2.5 kbits Configurable Dual-Port SRAM

• Fast Wide-Decode Circuitry

• Up to 202 User-Programmable I/O Pins

High Performance

• 5.6 ns Clock-to-Out

• 250 MHz Performance

• 5 ns Dual-Port SRAM Access

• 100 MHz FIFOs

• 7.5 ns 35-Bit Address Decode

HiRel Features

• Commercial, Industrial, Automotive, and Military Temperature Plastic Packages

• Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages

• QML Certification

• Ceramic Devices Available to DSCC SMD

Ease of Integration

• Mixed-Voltage Operation 5.0V or 3.3V for core and I/Os, with PCI-Compliant I/Os

• Up to 100% Resource Utilization and 100% Pin Locking

• Deterministic, User-Controllable Timing

• Unique In-System Diagnostic and Verification Capability with Silicon Explorer II

• Low Power Consumption

• IEEE Standard 1149.1 JTAGBoundary Scan Testing
