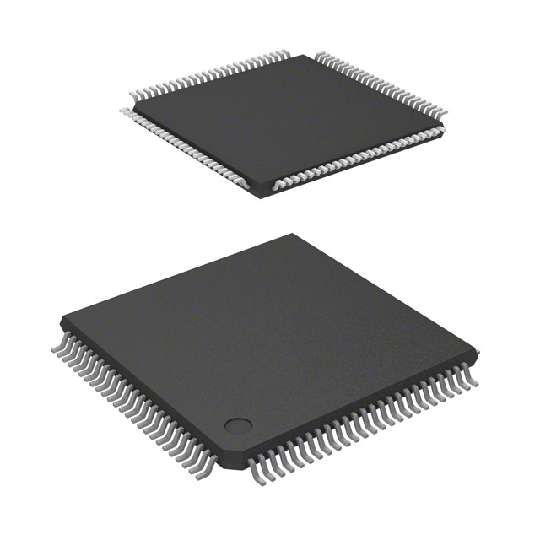

FPGA 42MX Family 14K Gates 336 Cells 77MHz/129MHz 0.45um Technology 3.3V/5V 100Pin VQFP
40MX and 42MX FPGA Families
Features
High Capacity
• Single-Chip ASIC Alternative
• 3,000 to 54,000 System Gates
• Up to 2.5 kbits Configurable Dual-Port SRAM
• Fast Wide-Decode Circuitry
• Up to 202 User-Programmable I/O Pins
High Performance
• 5.6 ns Clock-to-Out
• 250 MHz Performance
• 5 ns Dual-Port SRAM Access
• 100 MHz FIFOs
• 7.5 ns 35-Bit Address Decode
HiRel Features
• Commercial, Industrial, Automotive, and Military Temperature Plastic Packages
• Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages
• QML Certification
• Ceramic Devices Available to DSCC SMD
Ease of Integration
• Mixed-Voltage Operation 5.0V or 3.3V for core and I/Os, with PCI-Compliant I/Os
• Up to 100% Resource Utilization and 100% Pin Locking
• Deterministic, User-Controllable Timing
• Unique In-System Diagnostic and Verification Capability with Silicon Explorer II
• Low Power Consumption
• IEEE Standard 1149.1 JTAGBoundary Scan Testing
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A42MX09-FVQG100 Microsemi 美高森美 | 当前型号 | 当前型号 |
A42MX09-VQG100 美高森美 | 完全替代 | A42MX09-FVQG100和A42MX09-VQG100的区别 |
A42MX09-VQ100I 美高森美 | 类似代替 | A42MX09-FVQG100和A42MX09-VQ100I的区别 |
