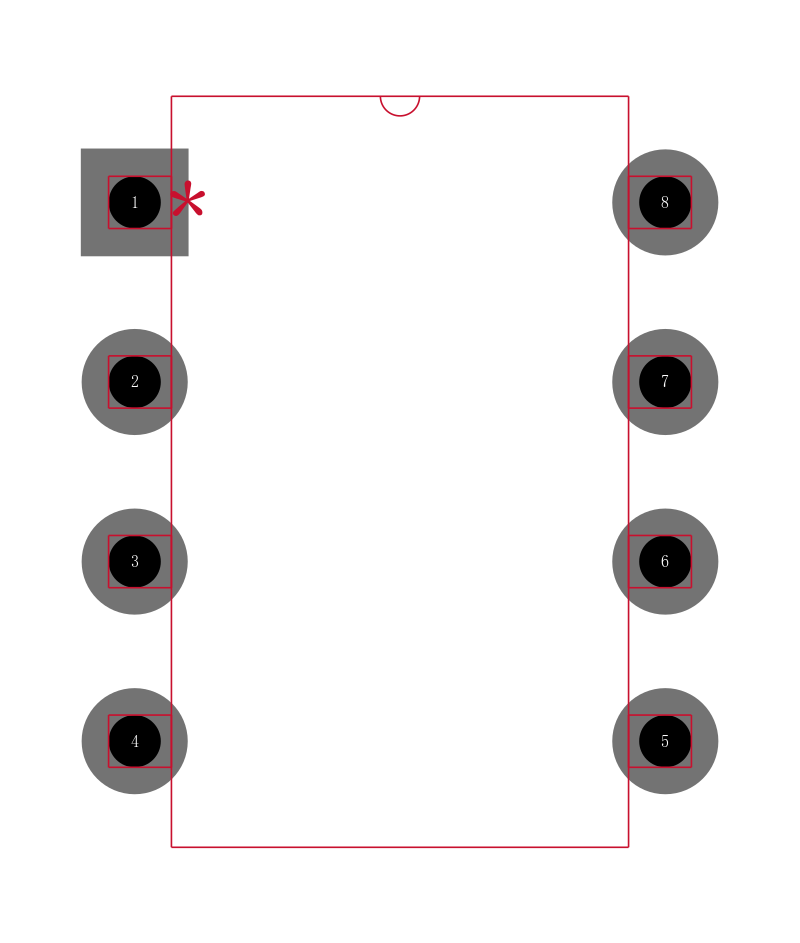

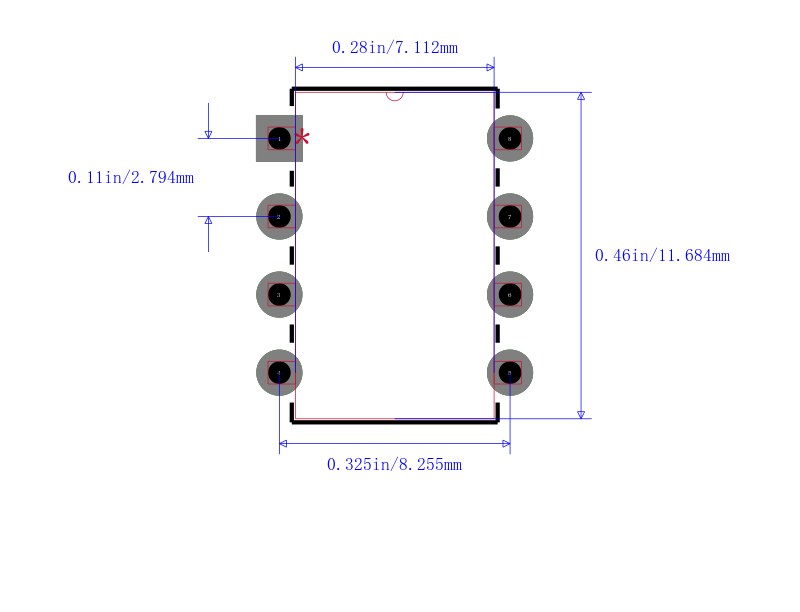

Ic Opamp Gp 700kHz Rro 8dip
GENERAL DESCRIPTION
The ALD1701 is a monolithic CMOS micropower high slew rate operational amplifier intended for a broad range of analog applications using ±1V to ±6V dual power supply systems, as well as +2V to +12V battery operated systems. All device characteristics are specified for +5V single supply or ±2.5V dual supply systems. Supply current is 250µA maximum at 5V supply voltage. It is manufactured with " enhanced ACMOS silicon gate CMOS process.
FEATURES
• All parameters specified for +5V single
supply or ±2.5V dual supply systems
• Rail to rail input and output voltage ranges
• No frequency compensation required --
unity gain stable
• Extremely low input bias currents --
1.0pA typical 30pA max.
• Ideal for high source impedance
applications
• Dual power supply ±1.0V to ±6.0V operation
• Single power supply +2V to +12V operation
• High voltage gain -- typically 100V/mV@ ±2.5V100dB
• Drive as low as 10KΩload
• Output short circuit protected
• Unity gain bandwidth of 0.7MHz
• Slew rate of 0.7V/µs
• Low power dissipation
APPLICATIONS
• Voltage amplifier
• Voltage follower/buffer
• Charge integrator
• Photodiode amplifier
• Data acquisition systems
• High performance portable instruments
• Signal conditioning circuits
• Sensor and transducer amplifiers
• Low leakage amplifiers
• Active filters
• Sample/Hold amplifier
• Picoammeter
• Current to voltage converter
