超快软恢复整流二极管 ULTRAFAST SOFT RECOVERY RECTIFIER DIODE
PRODUCT FEATURES
• Ultrafast Recovery Times
• Soft Recovery Characteristics

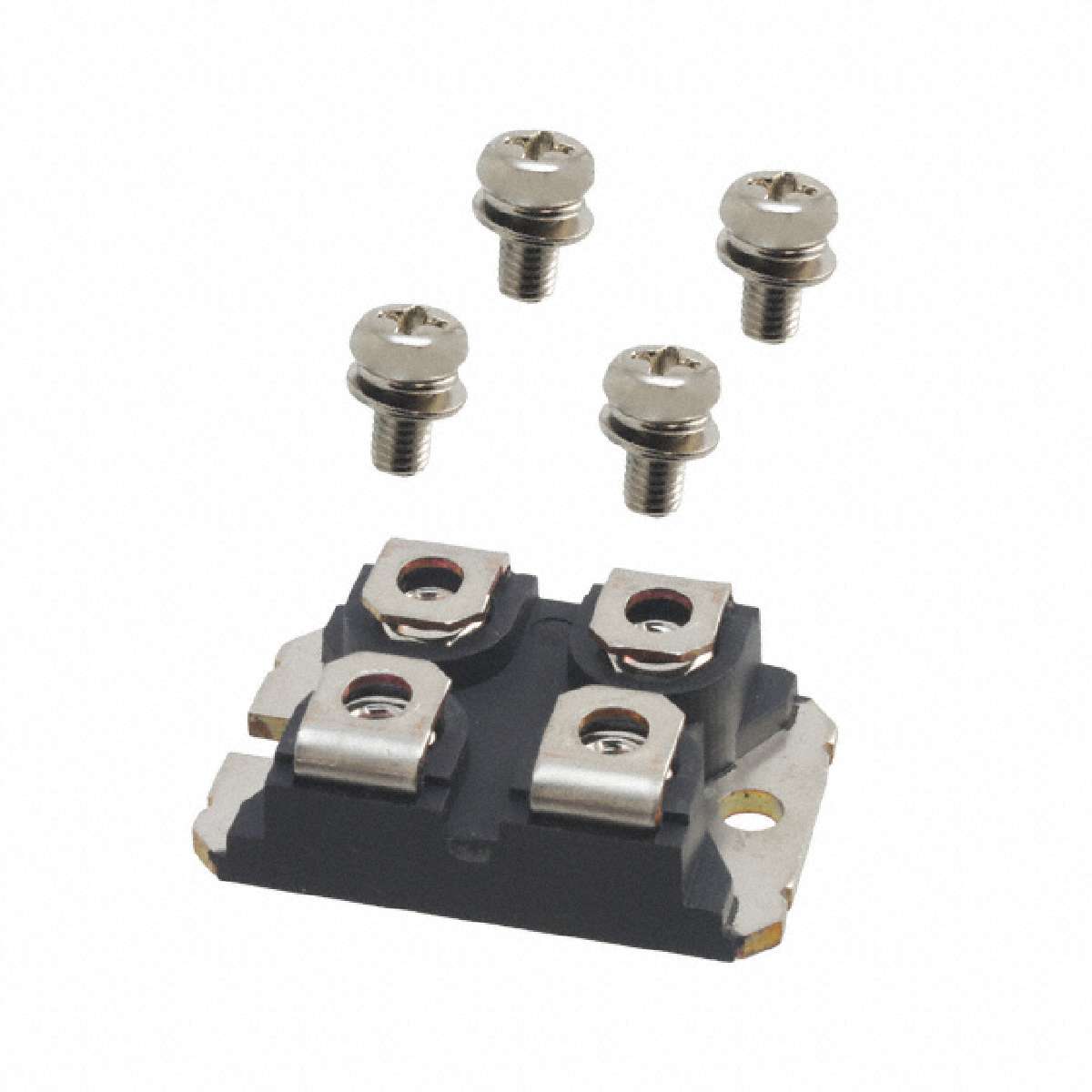

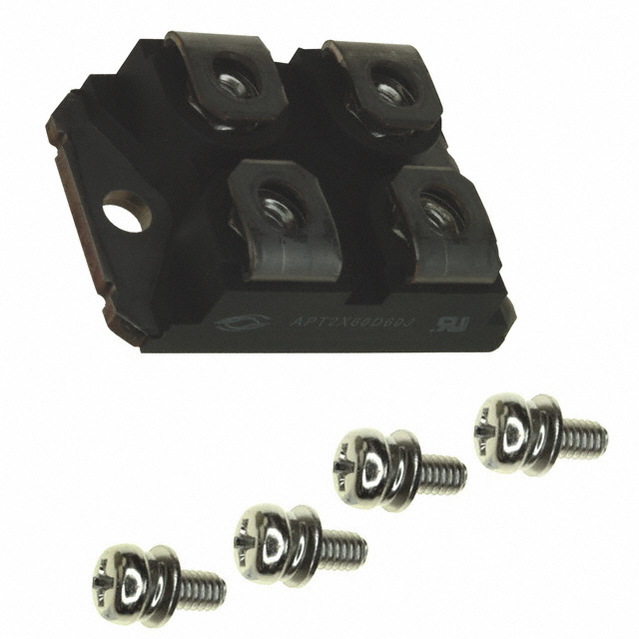

• Popular SOT-227 Package
• Low Forward Voltage
• High Blocking Voltage
• Low Leakage Current
PRODUCT APPLICATIONS
• Anti-Parallel Diode
-Switchmode Power Supply
-Inverters
• Free Wheeling Diode
-Motor Controllers
-Converters
• Snubber Diode
• Uninterruptible Power Supply UPS
• Induction Heating
• High Speed Rectifiers
PRODUCT BENEFITS
• Low Losses
• Low Noise Switching
• Cooler Operation
• Higher Reliability Systems
• Increased System Power Density
额定电压DC 600 V
额定电流 60.0 A
正向电压 1.6 V
反向恢复时间 130 ns
正向电流 60 A
正向电压Max 1.8V @60A
正向电流Max 60 A
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Screw
引脚数 4
封装 SOT-227-4
长度 38.2 mm
宽度 25.4 mm
高度 9.6 mm
封装 SOT-227-4
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
