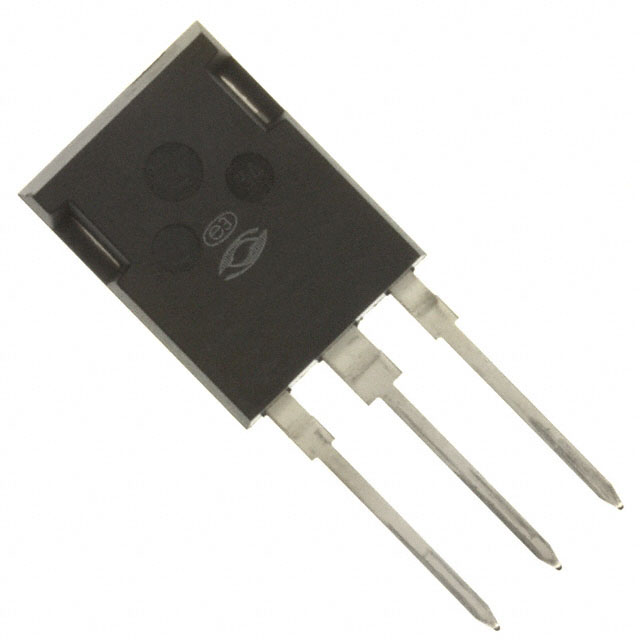

T-MAX N-CH 500V 67A
In addition to amplifying electronic signals, you"ll be able to switch between various lines with the power MOSFET, developed by . Its maximum power dissipation is 694000 mW. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.
额定电压DC 500 V
额定电流 67.0 A
极性 N-CH
耗散功率 694000 mW
输入电容 7.01 nF
栅电荷 141 nC
漏源极电压Vds 500 V
连续漏极电流Ids 67.0 A
上升时间 28 ns
输入电容Ciss 7010pF @25VVds
额定功率Max 694 W
下降时间 30 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 694W Tc
安装方式 Through Hole
引脚数 3
封装 TO-247-3
封装 TO-247-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
APT50M65B2FLLG Microsemi 美高森美 | 当前型号 | 当前型号 |
APT50M65B2LLG 美高森美 | 类似代替 | APT50M65B2FLLG和APT50M65B2LLG的区别 |
