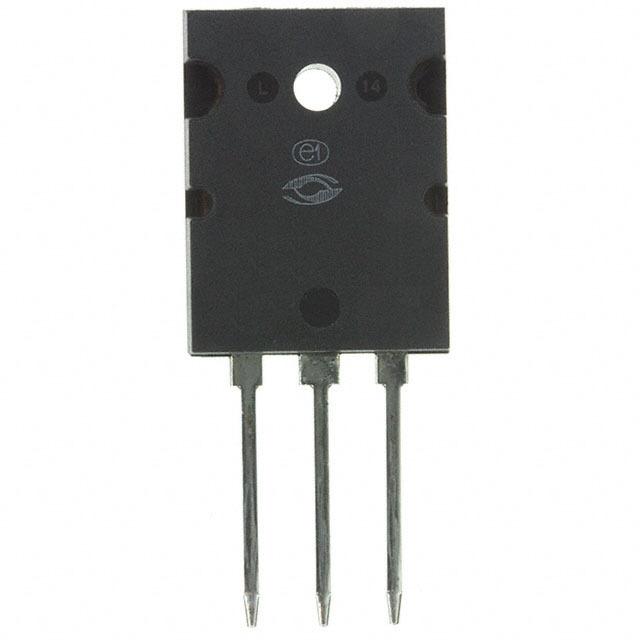

Trans MOSFET N-CH 500V 67A 3Pin3+Tab TO-264
If you need to either amplify or switch between signals in your design, then "s power MOSFET is for you. Its maximum power dissipation is 694000 mW. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This N channel MOSFET transistor operates in enhancement mode.
额定电压DC 500 V
额定电流 67.0 A
耗散功率 694 W
输入电容 7.01 nF
栅电荷 141 nC
漏源极电压Vds 500 V
连续漏极电流Ids 67.0 A
上升时间 28 ns
输入电容Ciss 7010pF @25VVds
额定功率Max 694 W
下降时间 30 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 694W Tc
安装方式 Through Hole
引脚数 3
封装 TO-264-3
封装 TO-264-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
APT50M65LLLG Microsemi 美高森美 | 当前型号 | 当前型号 |
APT50M65LFLLG 美高森美 | 类似代替 | APT50M65LLLG和APT50M65LFLLG的区别 |
APT50M65LFLL 美高森美 | 功能相似 | APT50M65LLLG和APT50M65LFLL的区别 |
APT50M65LLL 美高森美 | 功能相似 | APT50M65LLLG和APT50M65LLL的区别 |
