A1220LLHLT-T 编带
Implement this Hall effect sensor from into your project to include proximity switching, positioning, speed detection, and current sensing capabilities. This part can handle a current up to 25 mA. This device"s minimum operating supply voltage of 3 V, while its maximum is 24 V. This part has a temperature range of -40 °C to 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
电源电压DC 3.00V min
输出电流 25 mA
供电电流 4 MA
带宽 800 kHz
输出电流Max 25 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V
安装方式 Surface Mount

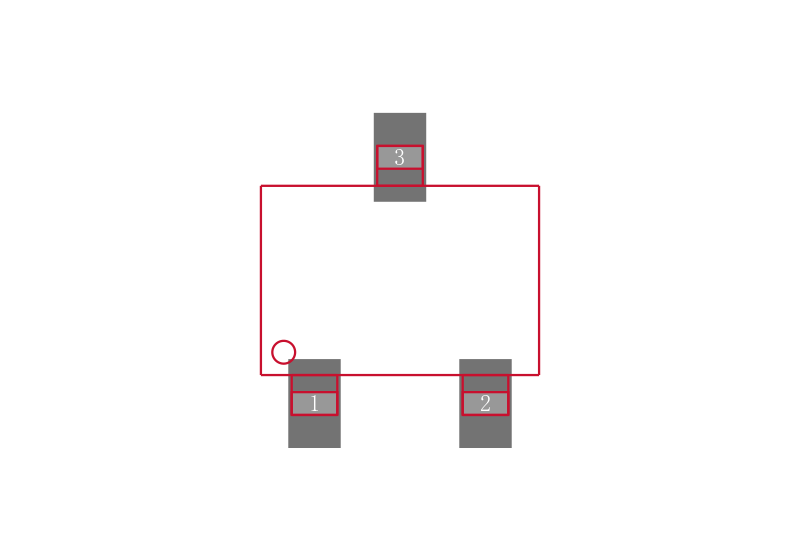

引脚数 3

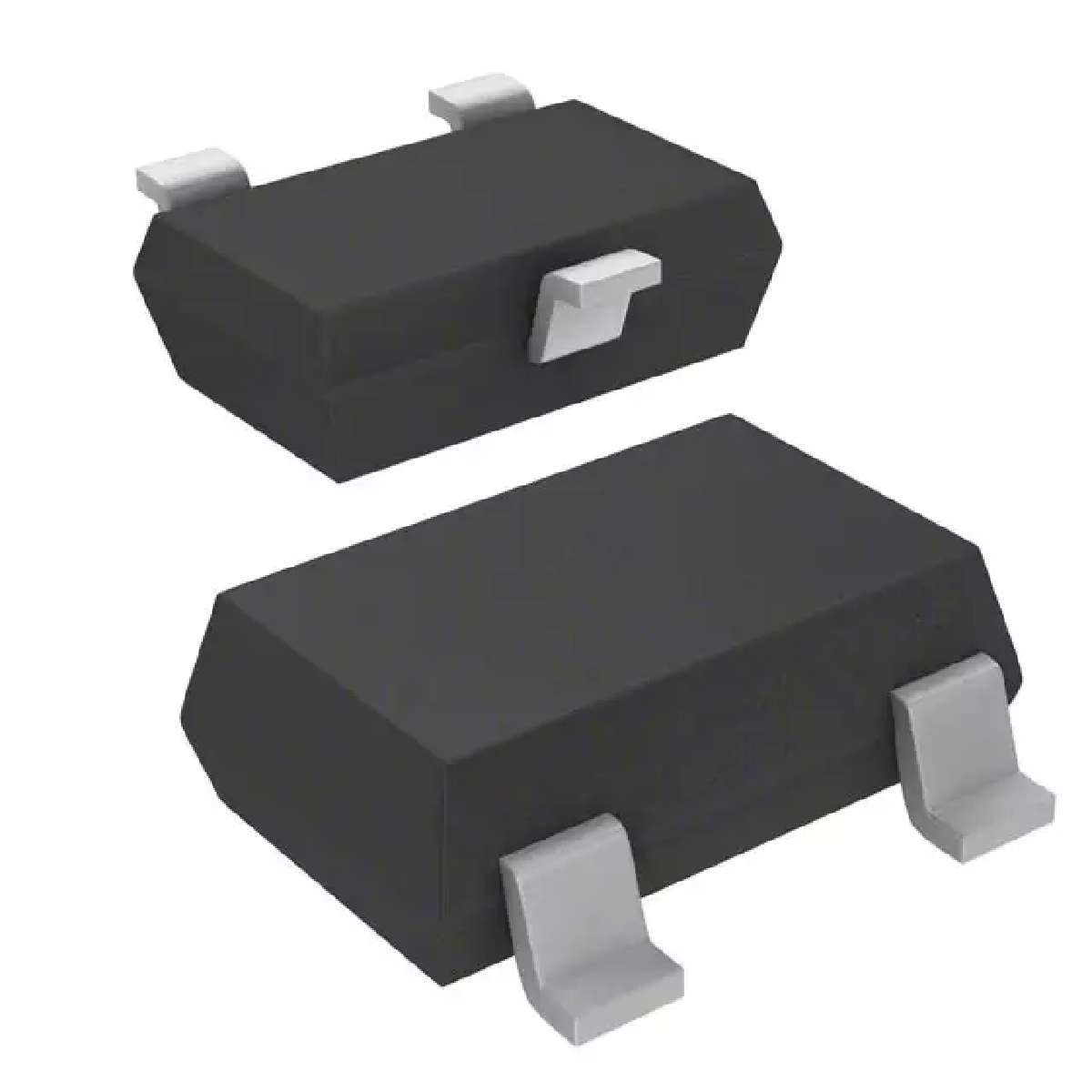

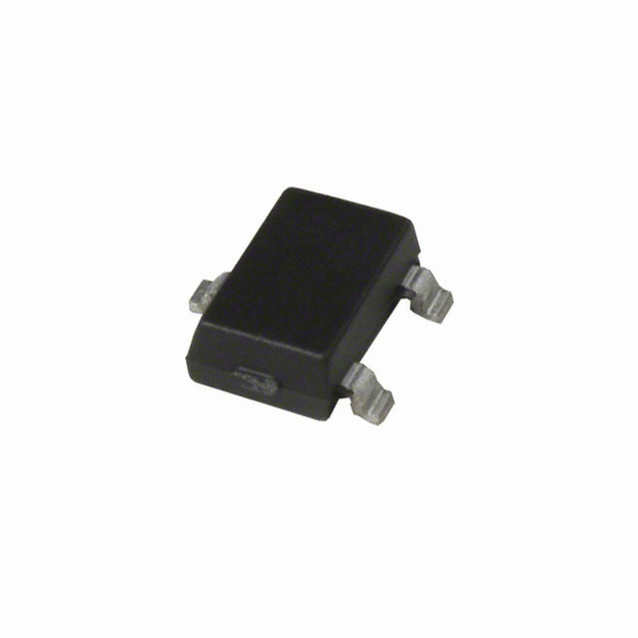

封装 SOT-23
封装 SOT-23
工作温度 -40℃ ~ 150℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A1220LLHLT-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
A1220LLHLX-T 急速微电子 | 完全替代 | A1220LLHLT-T和A1220LLHLX-T的区别 |
A1220ELHLT-T 急速微电子 | 类似代替 | A1220LLHLT-T和A1220ELHLT-T的区别 |
