霍尔效应开关
Description
The A 3211 and A3212 integrated circuits are ultra-sensitive, pole in de pen dent Hall-effect switches with latched digital output. These sensors are es pe cial ly suited for operation in battery-operated, hand-held equip ment such as cellular and cordless tele phones, pagers, and palmtop com put ers. A 2.5 volt to 3.5 volt operation and a unique clocking scheme reduce the average op er at ing power requirements to less than 15 μW with a 2.75 volt supply.
Features and Benefits
▪ Micropower operation
▪ Operation with north or south pole
▪ 2.5 to 3.5 V battery operation
▪ Chopper stabilized
▫ Superior temperature stability
▫ Extremely low switchpoint drift
▫ Insensitive to physical stress
▪ High ESD protection
▪ Sol id-state reliability
▪ Small size
▪ Easily manufacturable with magnet pole independence
电源电压DC 2.50V min
输出电流 1 mA
供电电流 2 mA
输出电流Max 1 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 3.5V
电源电压Max 3.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 3

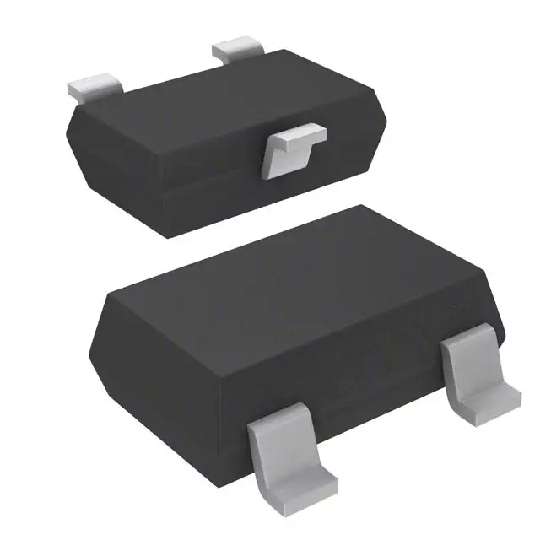

封装 SOT-23
高度 0.95 mm
封装 SOT-23
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A3211ELHLT-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
A3211EELLT-T 急速微电子 | 完全替代 | A3211ELHLT-T和A3211EELLT-T的区别 |
A3211ELHLX-T 急速微电子 | 完全替代 | A3211ELHLT-T和A3211ELHLX-T的区别 |
A3211EEHLT-T 急速微电子 | 类似代替 | A3211ELHLT-T和A3211EEHLT-T的区别 |
