AVT Sub-miniature High Precision Switches FS-T versionThese subminiature high precision microswitches have are of a flux resistant construction and are available with a variety of actuator and terminal styles. Typical applications include communication equipment, vending machines, security systems, data systems and medical equipment.Cross line terminals Flux-resistant construction Integrally moulded terminals Common pitch, right angle, left angle terminals for PC board ### 微型与超微型开关类型： | 开关单刀双掷 ---|--- 连接： | 铲形电缆靴 6.3 ´ 0.8 mm， 189157：虽然 4.8 ´ 0.5 mm 开关材料： | 银 机械寿命： | 30 ´ 106 能最大限度地运作 触点负载 温度范围： | -55°C* 至 +85°C 尺寸： | （参见附图）

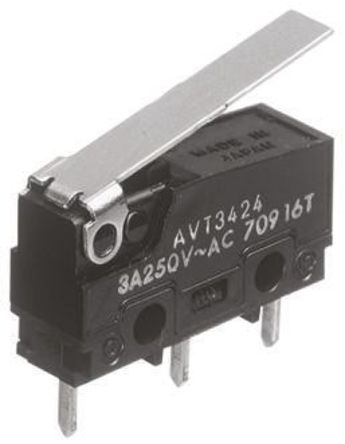

AVT Sub-miniature High Precision Switches FS-T version
These subminiature high precision microswitches have are of a flux resistant construction and are available with a variety of actuator and terminal styles. Typical applications include communication equipment, vending machines, security systems, data systems and medical equipment.
Cross line terminals
Flux-resistant construction
Integrally moulded terminals
Common pitch, right angle, left angle terminals for PC board
### 认可
UL/CSA/VDE/SEMKO
额定电压DC 30 V
额定电压AC 125 V
额定电流 3A AC, 3A DC
触点类型 SPDT
触点额定电流 3A @250VAC
额定电流Max 3A @250VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压DC Max 125 V
额定电压AC Max 250 V
安装方式 Through Hole
封装 -
高度 14.9 mm
封装 -
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
