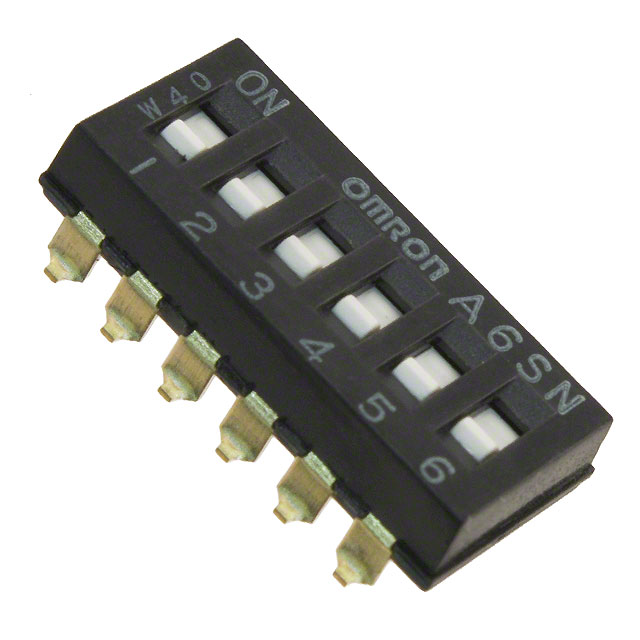

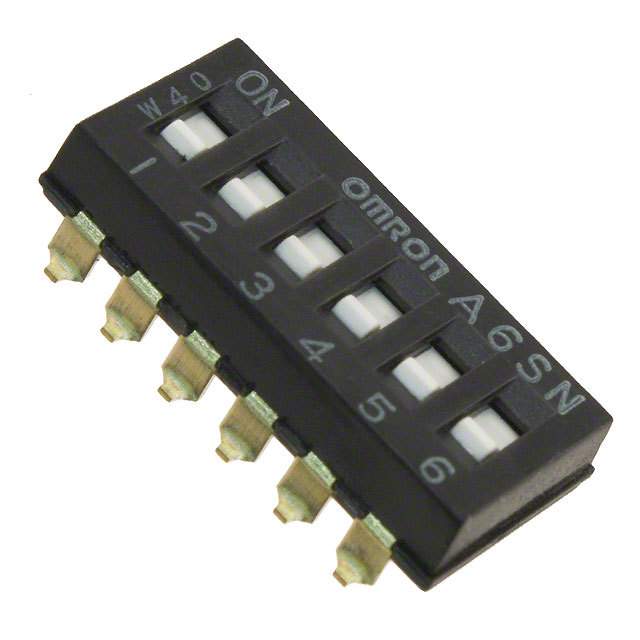

A6SN-6101

OMRON ELECTRONIC COMPONENTS A6SN-6101 DIP / SIP Switch, Flush Slide, 6Circuits, SPST, SMD, DIP Unsealed, 25VDC

DIP SPST 位置 表面贴装型 滑动式（标准） 触动器 25mA 24VDC

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

艾睿:

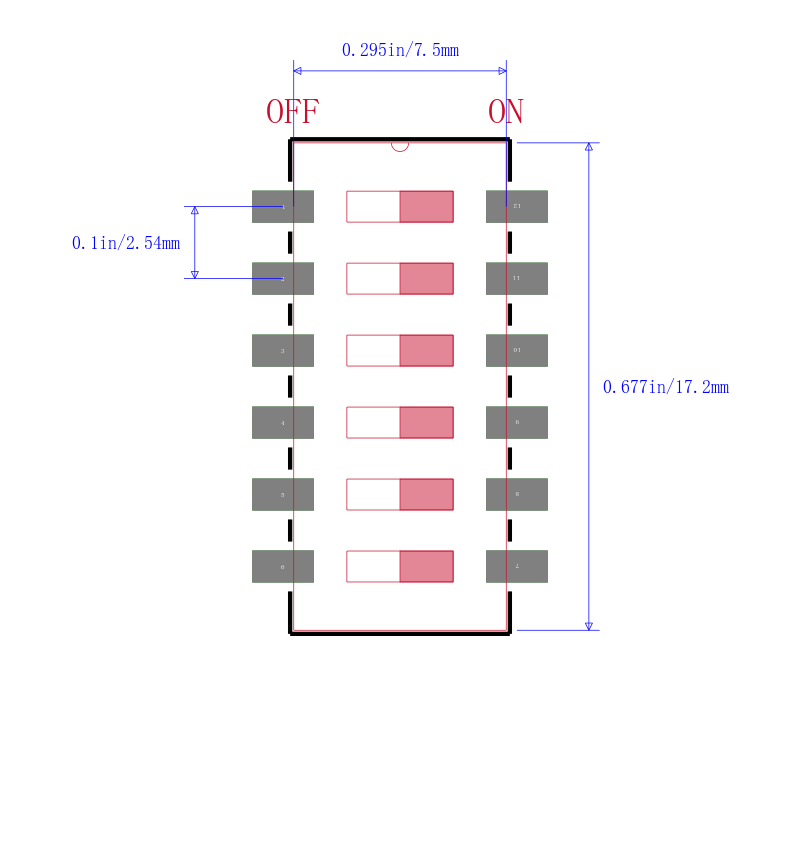

This A6SN-6101 dual in-line package switch from Omron can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A6SN-6101 DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 17.2 mm long, 4.55 mm tall and 9.3 mm deep.

安富利:
Switch DIP OFF ON SPST 6 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Stick

Chip1Stop:
Switch DIP OFF ON SPST 6 Flat Slide 0.025A 24VDC Gull Wing 2.54mm SMD Stick

TME:
Switch: DIP-SWITCH; Poles number:6; ON-OFF; 0.025A/24VDC; 100MΩ

Newark:
# OMRON ELECTRONIC COMPONENTS  A6SN-6101  DIP / SIP Switch, Flush Slide, 6 Circuits, SPST, SMD, DIP Unsealed, 25 VDC

MASTER:
Switch DIP OFF ON SPST 6 Flush Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube

Electro Sonic:
Switch DIP OFF ON SPST 6 Flush Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube
