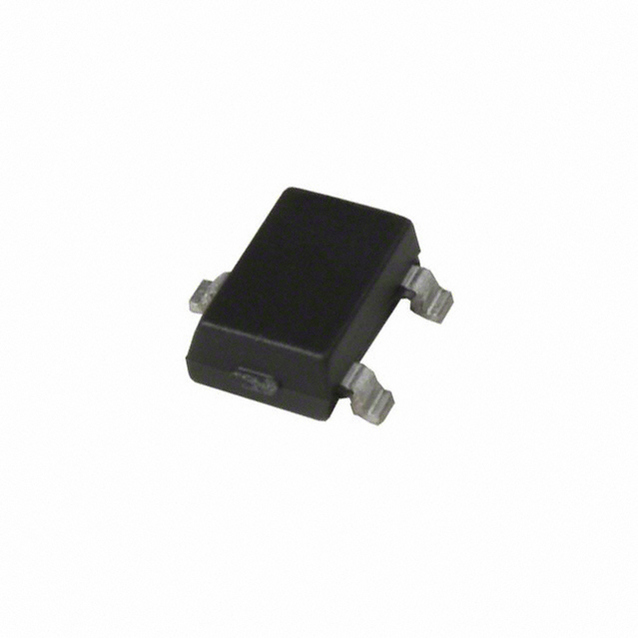

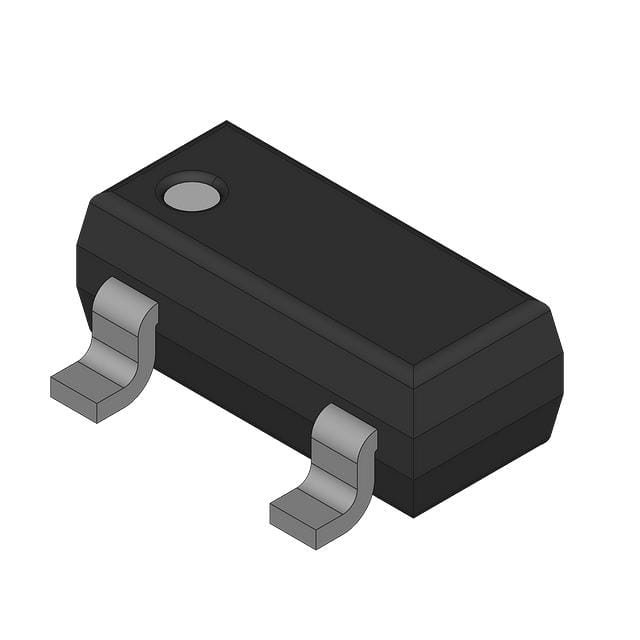

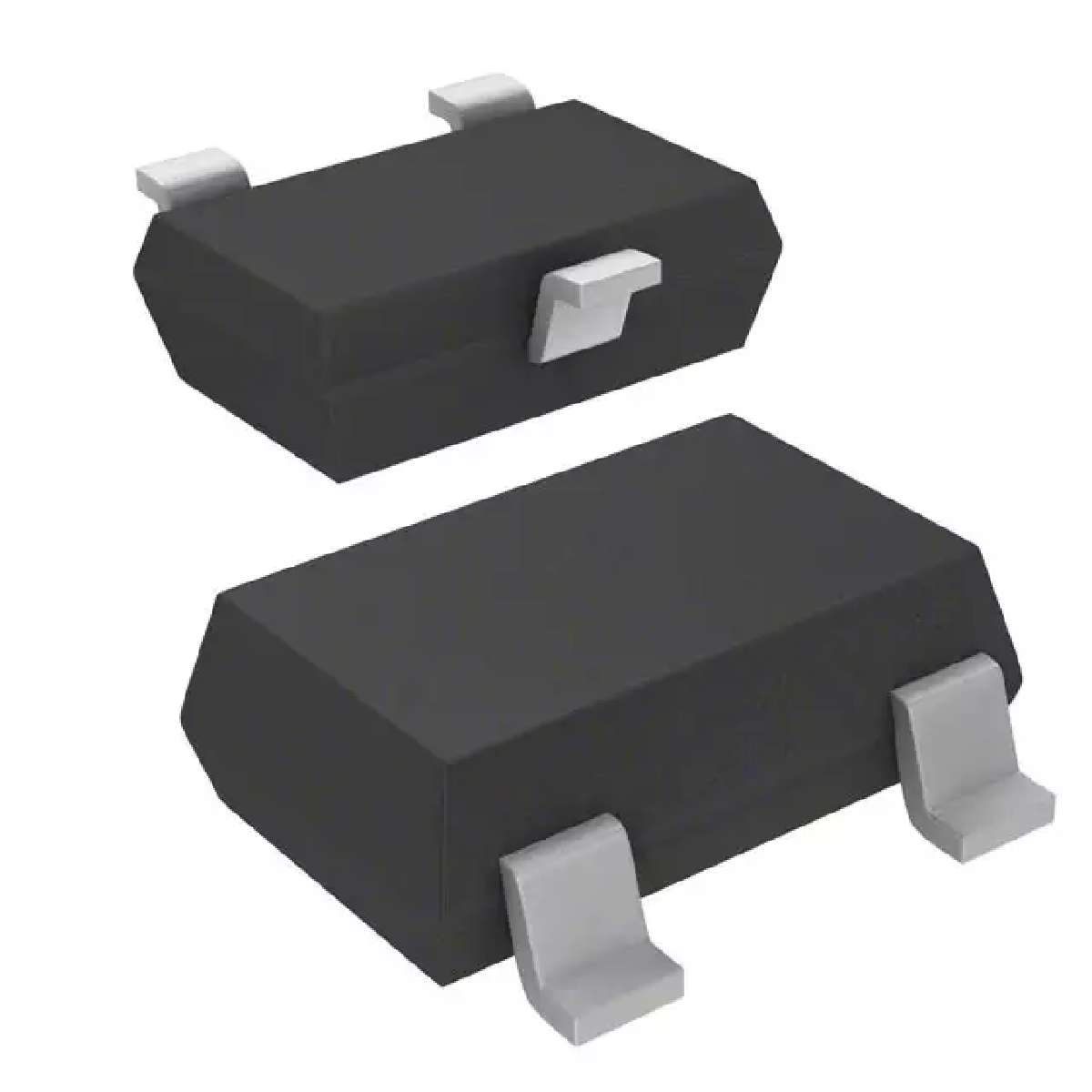

ALLEGRO MICROSYSTEMS A1125LLHLT-T 霍尔效应传感器, 单极性, 25 mA, SOT-23, 3 引脚, 3 V, 24 V
The is a chopper-stabilized unipolar Precision Hall Effect Switch has extremely temperature-stable and stress-resistant feature. Device includes on a single silicon chip a voltage regulator, hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger and a short- circuit protected open-drain output to sink up to 25mA. A south pole of sufficient strength turns the output ON. Removal of the magnetic field turns the output OFF. It is specially suited for operation over extended temperature ranges to 150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over-moulding, temperature dependencies and thermal stress.
电源电压DC 24.0V max
输出电流 25 mA
供电电流 4 MA
针脚数 3
输出电流Max 25 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 3

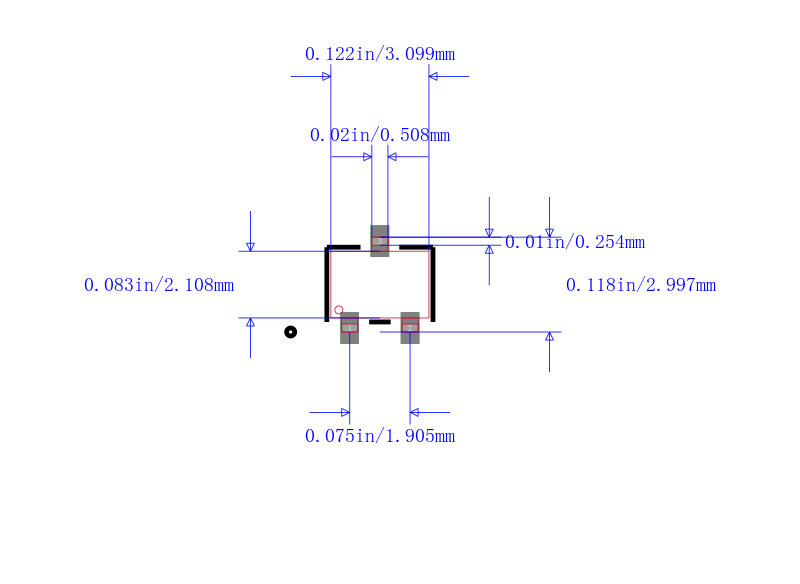

封装 SOT-23
封装 SOT-23
工作温度 -40℃ ~ 150℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 传感与仪器, Sensing & Instrumentation, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A1125LLHLT-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
A1125LLHLX-T 急速微电子 | 完全替代 | A1125LLHLT-T和A1125LLHLX-T的区别 |
