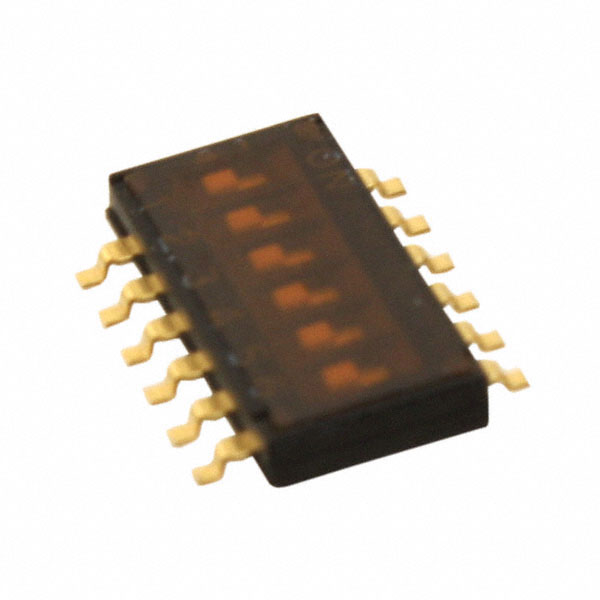

OMRON ELECTRONIC COMPONENTS A6H-6102 DIP / SIP开关, SPST, SMD, 6 电路, DIP密封, 24 VDC
The is a 6-pole surface-mount Half-pitch DIP Switch with seal tape offers ultra-low profile of 1.55m. The half-pitch 1.27mm design allows greater compactness and reduces mounting space by 63% compared with conventional models.
- .
- 10µA at 3.5VDC Minimum permissible load
- .
- 200mR Maximum contact resistance
- .
- 100MR at 100VDC Minimum insulation resistance
- .
- 300VAC Dielectric strength for 1 minute between terminals
- .
- 30 to 500gf 0.3 to 4.9N Operating force
- .
- -20 to 70°C Ambient operating temperature
- .
- 1000 Operations minimum mechanical service life
- .
- 1000 Operations minimum electrical service life
额定电压DC 24 V
额定电流 25 mA
触点类型 SPST
电路数 6
针脚数 6
额定电流Max 0.025A @24VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Surface Mount
封装 DIP-6
长度 8.85 mm
宽度 6.7 mm
高度 1.55 mm
封装 DIP-6
触点材质 Beryllium Copper
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2010/12/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A6H-6102 Omron 欧姆龙 | 当前型号 | 当前型号 |
A6H-6102-P 欧姆龙 | 完全替代 | A6H-6102和A6H-6102-P的区别 |
A6H-6102-R100 欧姆龙 | 完全替代 | A6H-6102和A6H-6102-R100的区别 |
TDA06H0SB1 C&K Components | 功能相似 | A6H-6102和TDA06H0SB1的区别 |
