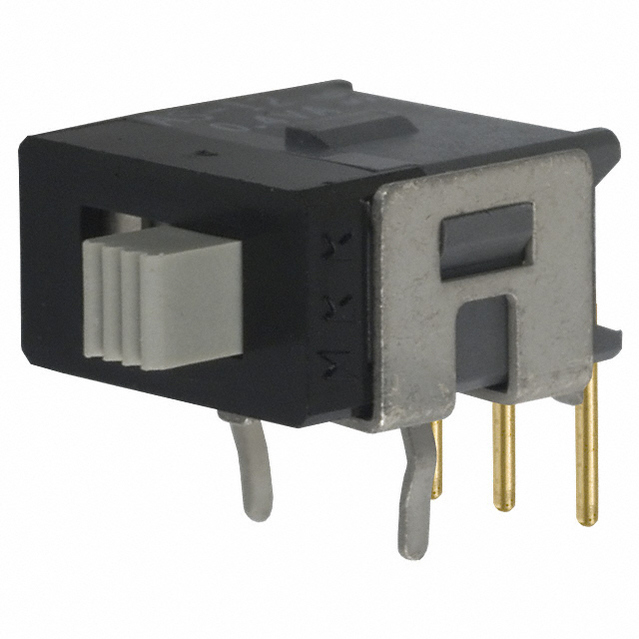

NKK SWITCHES AS12AH /t微型滑动开关
Series AS subminiature slides are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. Series AS slide switches have not been tested for UL recognition or CSA certification.
e络盟:
滑动开关, SPDT, 0.4VA, 28V, PCB
艾睿:
Turn your circuit on or off using the AS12AH slide switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This slide switch has an operating temperature range of -30 °C to 85 °C. The AS12AH slide switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 9.8 mm long, 6.18 mm tall and 12.7 mm deep.
Allied Electronics:
SWITCH, SPDT, ON-NONE-ON, RIGHT ANGLE
富昌:
28 VAC 28 VDC 0.4 VA 50000Cycles SWITCH SLIDE SPDT
Chip1Stop:
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole
Verical:
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole
Newark:
# NKK SWITCHES AS12AH Slide Switch, SPDT, On-None-On, Through Hole, 28 V
Win Source:
Slide Switch SPDT Through Hole, Right Angle
额定电压DC 28 V
额定电压AC 28 V
排数 1
方向 Right Angle
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 9.8 mm
宽度 12.7 mm
高度 6.18 mm
触点材质 Gold
工作温度 -30℃ ~ 85℃
产品生命周期 50000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AS12AH NKK 日本长野 | 当前型号 | 当前型号 |
TS01ABE C&K Components | 功能相似 | AS12AH和TS01ABE的区别 |
