A1122LUA-T

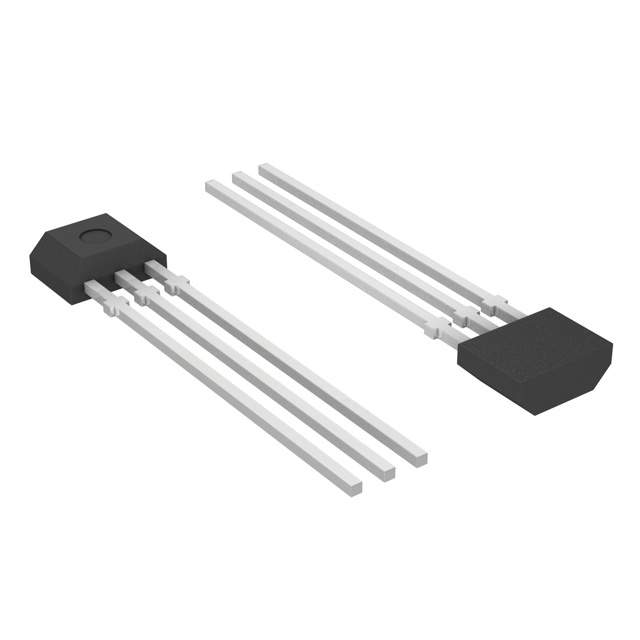

ALLEGRO MICROSYSTEMS  A1122LUA-T  霍尔效应传感器, 单极性, 25 mA, SIP, 3 引脚, 3 V, 24 V

A1120/1/2/3/5 斩波稳定霍尔效应传感器开关，Allegro Microsystems

Allegro Microsystems A1120、A1121、A1122、A1123 和 A1125 霍尔效应单极开关为温度稳定和耐应力传感器 IC。高温性能可通动态偏置抵消实现，从而降低设备注塑成形、温度依赖性和热应力通常引起的残余偏置电压。

它们包括调压器、霍尔电压发生器、小信号放大器、斩波稳定、施密特触发器和短路保护漏极开路输出，可连续吸收 25 mA。调压器支持 3 V 到 24 V 供电电压。

对于 A1120、A1121、A1122 和 A1123，南磁极可开启输出，取出则转关闭输出。对于 A1125 则相反，南磁极关闭 A1125 输出。

单极切换点

耐受物理应力

卓越的温度稳定性

输出短路保护

使用未调节电源操作

得捷:
MAGNETIC SWITCH UNIPOLAR 3SIP

欧时:
Allegro Microsystems A1122LUA-T 霍尔效应传感器, 单极磁场, 200 Gs, 3引脚 SIP封装

艾睿:
Use this A1122LUA-T Hall effect sensor from Allegro MicroSystems for proximity switching, positioning, speed detection, and current sensing applications. This part can handle a current up to 25 mA. This device&s;s minimum operating supply voltage of 3 V, while its maximum is 24 V. This part has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product comes packaged in bulk, so the parts will be stored loosely.

安富利:
Hall Effect Sensor 25mA Unipolar 3V to 24V 3-Pin SIP Bulk

Chip1Stop:
Hall Effect Sensor 25mA Unipolar 3.3V/5V/9V/12V/15V/18V 3-Pin Ultra Mini SIP Bulk

Verical:
Hall Effect Sensor 25mA Unipolar 3.3V/5V/9V/12V/15V/18V Automotive 3-Pin Ultra Mini SIP Bulk

Newark:
# ALLEGRO MICROSYSTEMS  A1122LUA-T  Hall Effect Sensor, 150 C
