A1210ELHLT-T

ALLEGRO MICROSYSTEMS  A1210ELHLT-T  霍尔效应开关, 锁定开关, 锁定式

A1210/1/2/3/4 Continuous Time Hall Effect Latches, Allegro Microsystems

The Allegro Microsystems A1210/1/2/3/4 Hall-effect latches include a voltage regulator, Hall-voltage generator, small-signal amplifier, Schmitt trigger, and NMOS output transistor. The voltage regulator enables operation from 3.8 V to 24 V. On-board protection circuitry provides a ±30 V absolute maximum voltage rating for automotive and industrial motor commutation applications.

All devices in the family are identical except for magnetic switchpoint levels.

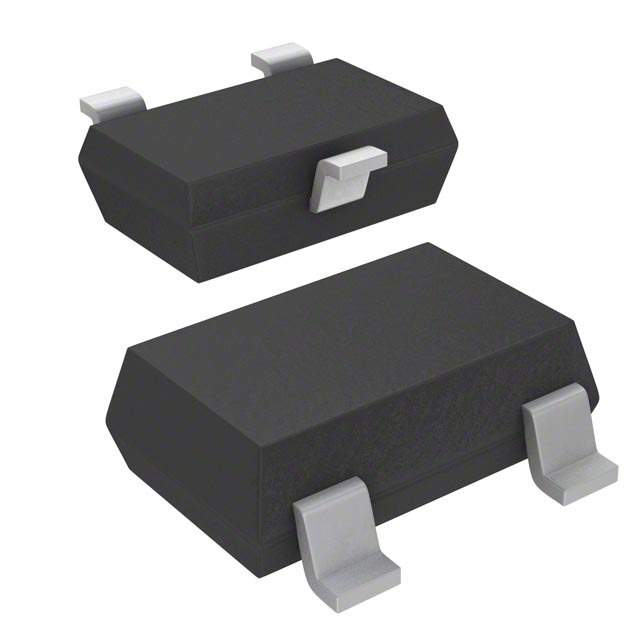

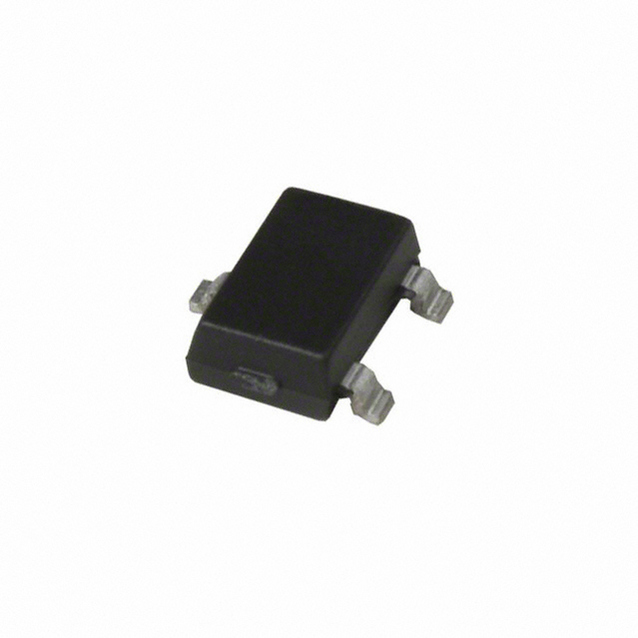

Available in a SOT23W, low profile surface-mount package or a three-lead ultramini SIP for through-hole mounting.

AEC-Q100 automotive qualified

Continuous-time operation

Fast power-on time

Low noise

Stable operation over full operating temperature range

Reverse battery protection

Solid-state reliability

Robust EMC performance

High ESD rating

Regulator stability without a bypass capacitor

### 霍尔效应，Allegro Microsystems
