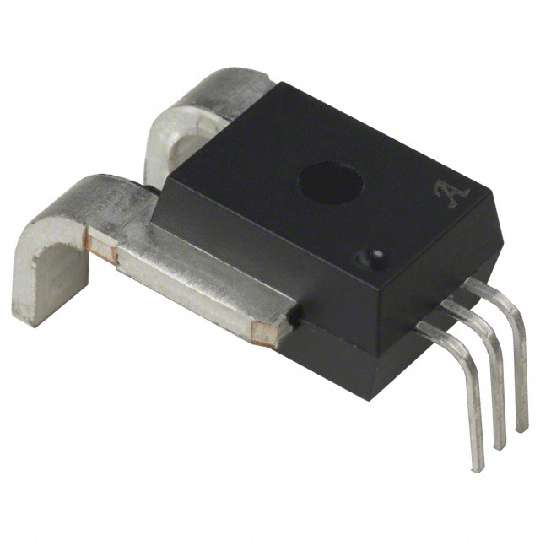

ALLEGRO MICROSYSTEMS ACS756SCA-100B-PFF-T 电流传感器, 电压隔离, 14 mA, 120 kHz, PFF, 5 引脚, 3 V, 5.5 V
The is a fully integrated, hall effect-based Linear Current Sensor IC with 3kVrms voltage isolation and a low-resistance current conductor. The device consists of a precision, low-offset linear hall circuit with a copper conduction path located near the die. Applied current flowing through this copper conduction path generates a magnetic field which the hall IC converts into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the hall transducer. The output of the device has a positive slope >VCC/2 when an increasing current flows through the primary copper conduction path from terminal 4 to terminal 5, which is the path used for current sampling. The internal resistance of this conductive path is 100µR typical, providing low power loss.
频率 120 kHz
电源电压DC 3.00V min
供电电流 14 mA
通道数 1
针脚数 5
静态电流 14 mA
带宽 120 kHz
输出电流Max 3 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
精度 ±7 %
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 5
封装 CA-5
封装 CA-5
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 车用, Industrial, Commercial, Communications & Networking, 电源管理, 通信与网络, Motor Drive & Control, Automotive, Power Management, Motor Drive & Control, Power Management, Commercial, , 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ACS756SCA-100B-PFF-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
ACS756SCB-100B-PFF-T 急速微电子 | 功能相似 | ACS756SCA-100B-PFF-T和ACS756SCB-100B-PFF-T的区别 |
