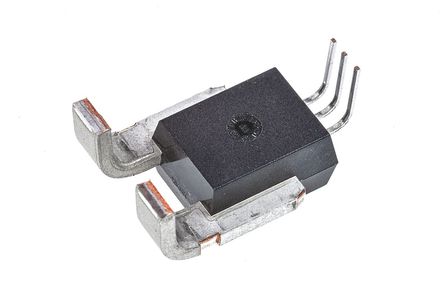

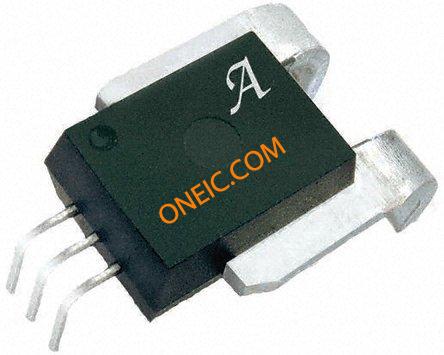

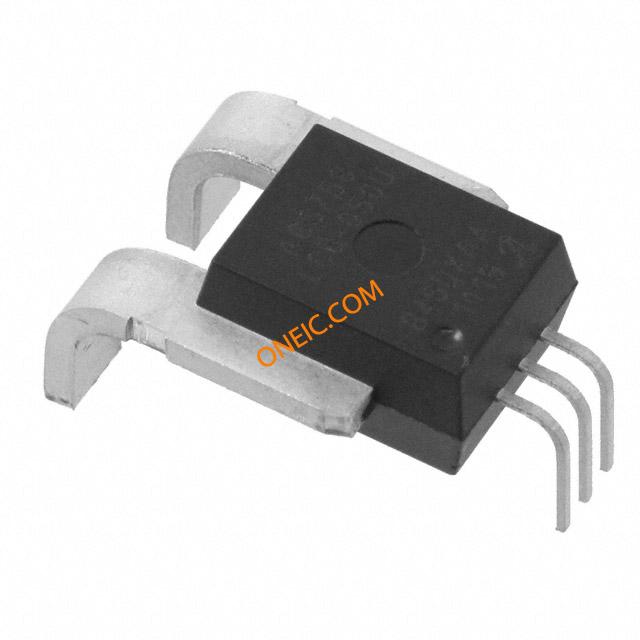

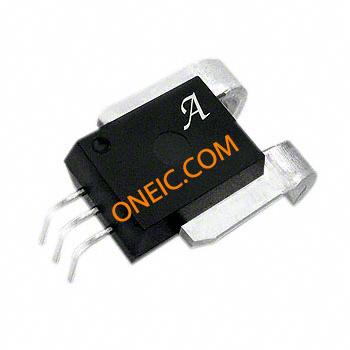

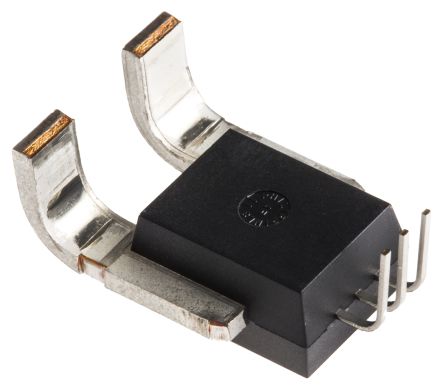

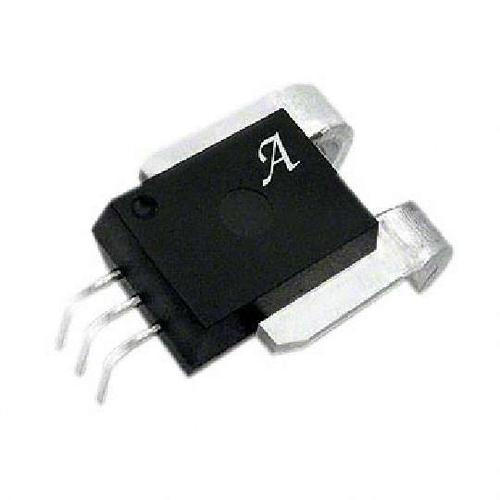

ALLEGRO MICROSYSTEMS ACS758ECB-200B-PFF-T 电流传感器, 电流导体, 10 mA, 120 kHz, PFF, 5 引脚, 3 V, 5.5 V
50A 至 200A 集成电流 IC,Allegro Microsystems
Allegro 电流传感器 IC,采用 CA 和 CB 封装
导体电阻 100 μΩ,通常适合超低功率耗损
汽车级选项,适用于恶劣的应用环境
3000 Vrms 电化隔离
### 霍尔效应电流传感器,
欧时:
Allegro Microsystems ACS758ECB-200B-PFF-T 霍尔效应传感器, 线性磁场, 3 → 5.5 V电源, 5引脚
得捷:
SENSOR CURRENT HALL 200A 5-CB
立创商城:
ACS758ECB-200B-PFF-T
艾睿:
Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Case CB-PFF Tube
安富利:
Hall Effect Sensor 1mA Monolithic 5V 3-Pin Case CB Tube
Chip1Stop:
Current Sensor AC/DC Current 5V Automotive 5-Pin Case CB-PFF Tube
Verical:
Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Case CB-PFF Tube
Newark:
Current Sensor, Current Conductor, 10 mA, 120 kHz, PFF, 5, 3 V, 5.5 V
频率 120 kHz
电源电压DC 3.00V min
输出电流 1 mA
供电电流 10 mA
通道数 1
针脚数 5
静态电流 10 mA
带宽 120 kHz
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1.2 %
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 5
封装 CB-PFF
长度 10 mm
宽度 13 mm
高度 7 mm
封装 CB-PFF
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 车用, 电源管理, Sensing & Instrumentation, Motor Drive & Control, Power Management, Automotive, 传感与仪器, 电机驱动与控, Automotive, Motor Drive & Control, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ACS758ECB-200B-PFF-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
ACS758LCB-100B-PFF-T 急速微电子 | 类似代替 | ACS758ECB-200B-PFF-T和ACS758LCB-100B-PFF-T的区别 |
ACS758ECB-200B-PSS-T 急速微电子 | 类似代替 | ACS758ECB-200B-PFF-T和ACS758ECB-200B-PSS-T的区别 |
