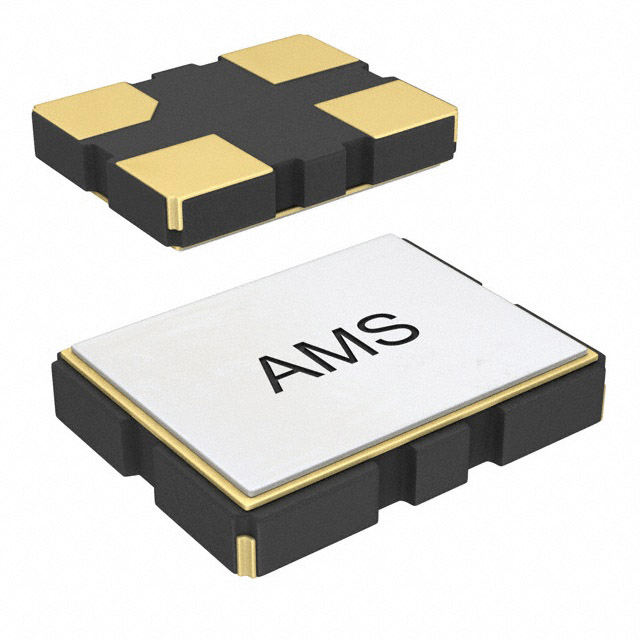

ABRACON ASE-50.000MHZ-LR-T.. 振荡器, 50MHZ, 3.2 X 2.5MM, LVCMOS
The is a 3.2 x 2.5 x 1.2mm 3.3V CMOS 25ppm surface-mount Crystal Oscillator features tri-state function, low RMS jitter and for tight stability. The ASE series oscillator for use with the CCD clock for VTR camera, equipment connected to PC or PC cards, PDA, wireless communication and solid state drive applications. It is suitable for reflow profile.
- .
- Low current consumption
- .
- 55% Maximum symmetry
- .
- 2ms Maximum start-up time
- .
- 5ps Maximum EMS jitter
频率 50 MHz
电源电压DC 3.30 V
频率稳定度 ±25 ppm
额定电压DC 3.3 V
负载电容 15 pF
占空比 55 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.3 V
电源电压Max 3.465 V
安装方式 Surface Mount
引脚数 4
封装 SMD-4
宽度 2.5 mm
高度 1.2 mm
封装 SMD-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, Wireless, 时钟与计时, 无线, 便携式器材, Computers & Computer Peripherals, 通信与网络, Portable Devices, Clock & Timing, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
