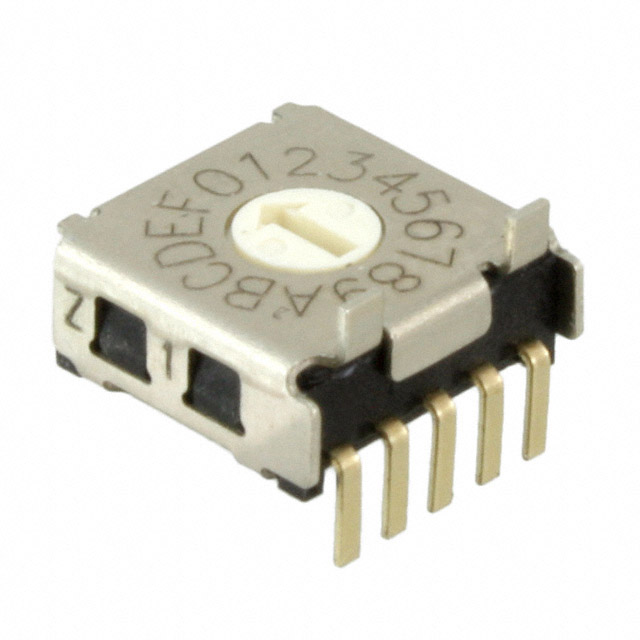

A6KSV-164RF

DIP 开关 - A6K/A6KS 系列微型尺寸 7.2 x 7.2 mm 安装空间减少 50%（与传统型号相比） 镀金触点可确保高可靠性 ### 印刷电路板安装印迹/引脚间距：引脚间距 2.54mm，行距 5.08mm

微型旋转 DIP - A6K/A6KS 系列

微型尺寸 7.2 x 7.2 mm

安装空间减少 50%（与传统型号相比）

镀金触点可确保高可靠性

### 印刷电路板安装

印迹/引脚间距：引脚间距 2.54mm，行距 5.08mm

欧时:
### 微型旋转 DIP 开关 - A6K/A6KS 系列微型尺寸 7.2 x 7.2 mm 安装空间减少 50%（与传统型号相比） 镀金触点可确保高可靠性 ![http://china.rs-online.com/largeimages/L7072939-01.gif]http://china.rs-online.com/largeimages/L7072939-01.gif ### 印刷电路板安装印迹/引脚间距：引脚间距 2.54mm，行距 5.08mm

得捷:
SWITCH ROTARY DIP HEX 25MA 24V

艾睿:
By acting as a series of switches, the A6KSV-164RF dual in-line package switch from Omron is the ideal component for use on a printed circuit board. It has a SP16T configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 80 °C. The A6KSV-164RF DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product is 7.2 mm long, 7.43 mm tall and 5.7 mm deep.

Chip1Stop:
Switch DIP ON OFF SP16T 16 Flush Shaft 0.025A 24VDC Gull Wing SMD Tube

MASTER:
Switch DIP SP16T 16 Flush Shaft 0.025A 24VDC Gull Wing SMD Tube

Electro Sonic:
Switch DIP SP16T 16 Flush Shaft 0.025A 24VDC Gull Wing SMD Tube
