AHE220PS12C6

交流/直流电源, ITE, 1输出, 180 W, 12 V, 15 A

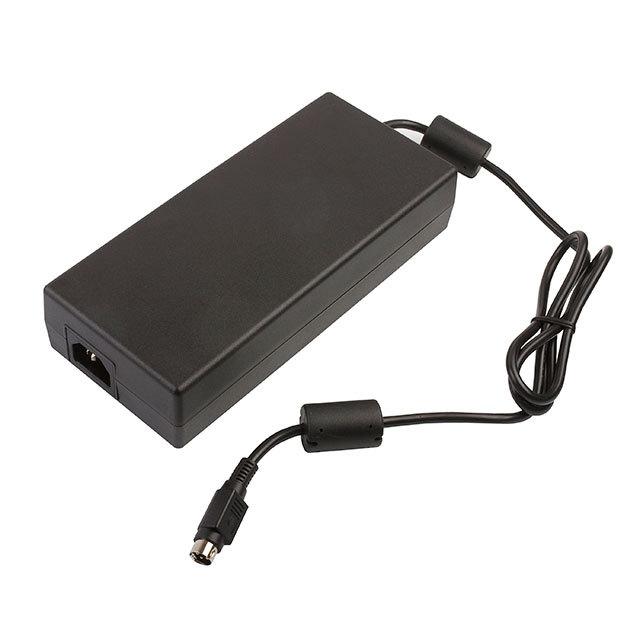

The from is an AHE220 series AC to DC external power supply. It has input to output isolation of 3000VAC and input to ground isolation of 1500VAC. The power supply features energy efficiency level VI high power density and low earth leakage current. It is approved by ITE safety approvals, IEC320-C6, IEC60950-1, EN60950-1, cUL60950-1, EN55022 level, CB, TUV and CE standards. The power supply has overload protection, overvoltage protection, short circuit protection and thermal protection.

.

Input voltage range from 90VAC to 264VAC and input frequency range from 47Hz to 63Hz

.

12V output voltage, 15A output current, 180W output power and 90% efficiency

.

Less than 0.21W standby power and initial set accuracy of ±2% at 50% load

.

Input current of 2.34A/0.98A measured at 100V/240V

.

Start-up delay of 3s, start-up rise time of 40ms and hold-up time of 10ms

.

Line regulation of ±0.5% and total regulation of ±5%

.

Switching frequency range from 75KHz to 150KHz

.

Ripple and noise of 7%/pk-pk

.

Dimension is 7.76inch x 3.46inch x 1.73inch 197mm x 88mmx 44mm and weight is 2.31lb 1050g

.

Operating temperature range from 0°C to 60°C derate from 100% load at 40°C to 50% load at 60°C
