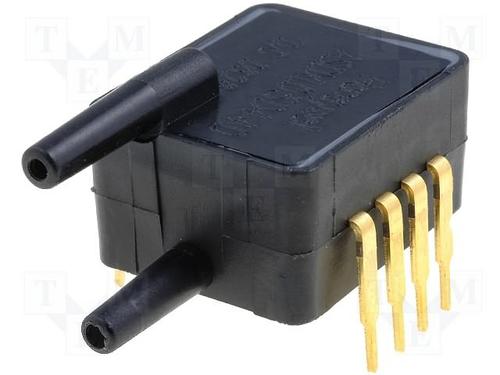

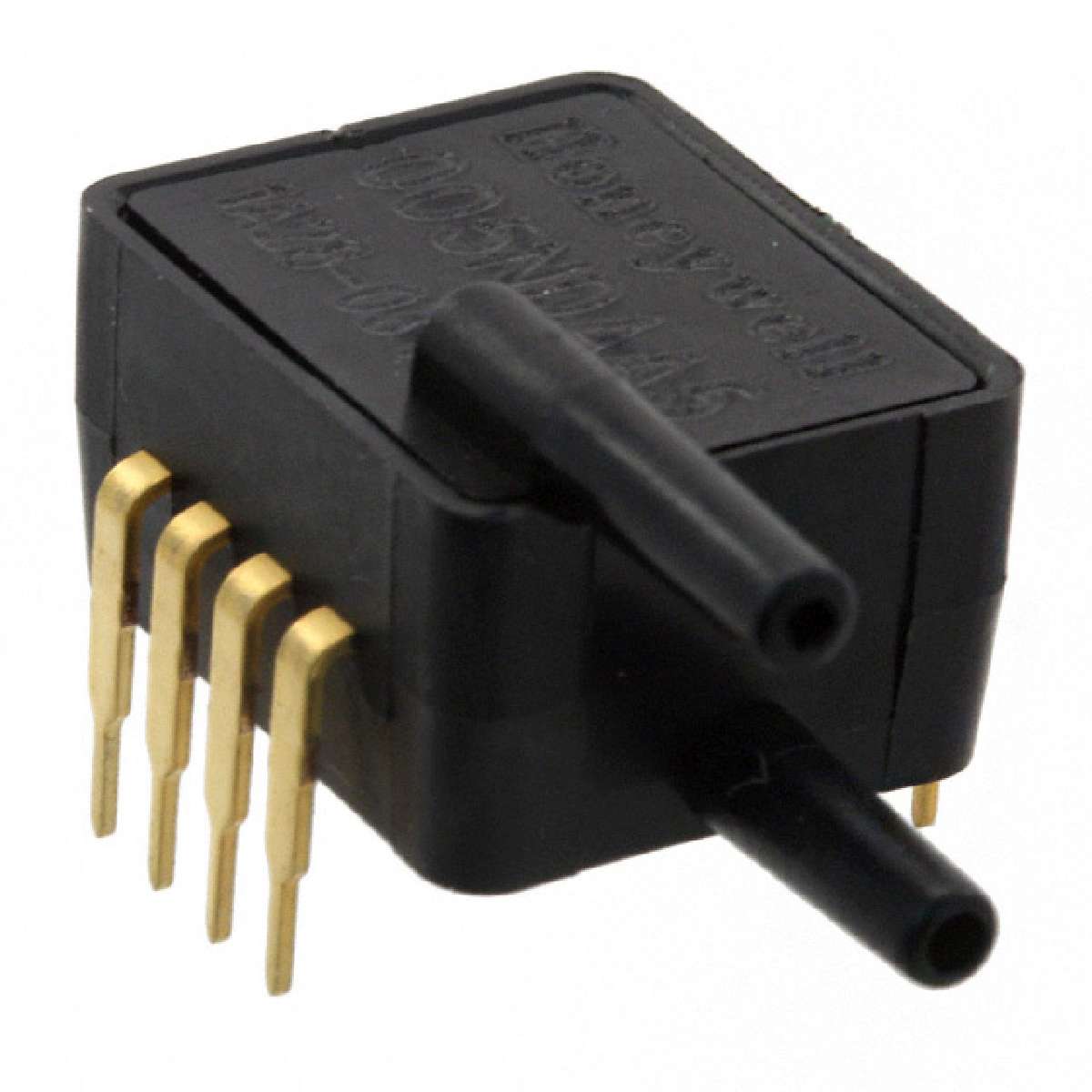

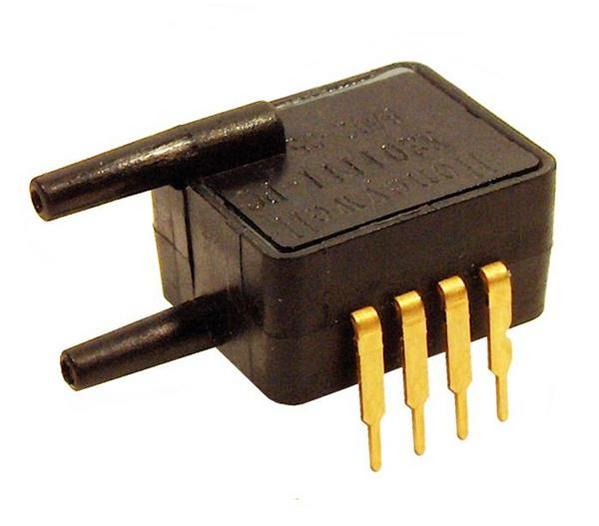

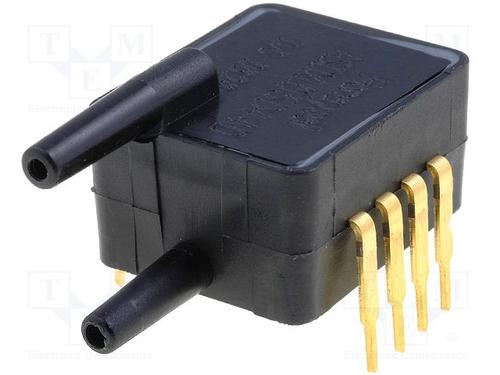

ASDX系列硅压力传感器 ASDX Series Silicon Pressure Sensors
Use this board mount pressure sensor from to ensure that your circuit board is protected from dangerous gas or liquid pressure changes. This device"s minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. This part has a minimum operating temperature of -20 °C and a maximum of 105 °C. It has a response time of 1 ms. This part"s ESD protection device has a maximum ESD protection device voltage of 3Min @ HBM kV. Its operating pressure range is -5inH2O to 5inH2O, while its maximum overload pressure is 10inH2O.
额定电压DC 5.00 V
输出电压 0.5.4.5 VDC
供电电流 2.5 mA
工作温度Max 105 ℃
工作温度Min -20 ℃
精度 ±2 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
高度 11.25 mm
封装 DIP-8
工作温度 -20℃ ~ 105℃
产品生命周期 Not Recommended for New Design
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 9026204000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ASDXRRX005NDAA5 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
ASDXL05D44D 霍尼韦尔 | 类似代替 | ASDXRRX005NDAA5和ASDXL05D44D的区别 |
