ANALOG DEVICES ADR530ARTZ-REEL7 电压参考, 高精准, 分流 - 固定, ADR530系列, 3V, SOT-23-3

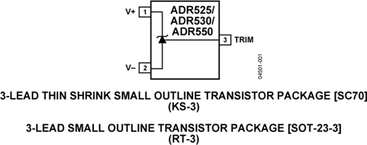

The is a high-precision shunt-mode Voltage Reference for use with energy measurement. The advanced design of the ADR530 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from a mere 50µA to a maximum of 15mA. This low operating current and ease of use make this reference ideally suited for handheld and battery-powered applications. A trim terminal is available on the ADR530 to allow adjustment of the output voltage over a ±0.5% range, without affecting the temperature coefficient of the device. This feature provides users with the flexibility to trim out small system errors.
容差 ±0.4 %
输出电压 3 V
输出电流 15 mA
供电电流 50.0 µA
通道数 1
针脚数 3
输出电压Max 3 V
输出电压Min 3 V
输出电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 0.4 %
安装方式 Surface Mount
引脚数 3

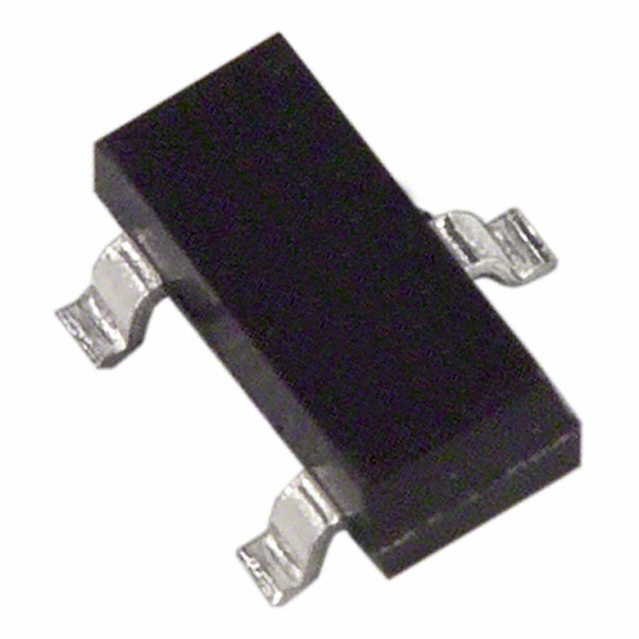

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
温度系数 ±70 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Power Management, Automotive, Portable Devices, Test & Measurement, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
