ANALOG DEVICES ADP220ACBZ-2818R7 芯片, 稳压器, LDO, 双路, 0.2A, 2.8/1.8V, WLCSP-6
PMIC - 稳压器 - 线性 正 固定 2 输出 200mA 6-WLCSP(1.45x0.95)
得捷:
IC REG LINEAR 1.8V/2.8V 6WLCSP
立创商城:
ADP220ACBZ-2818R7
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO ADP220ACBZ-2818R7 linear regulator manufactured by Analog Devices. Its typical dropout voltage at current is 0.15@200mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s 2 outputs can produce a current up to 0.2Typ|0.2Typ A. It only needs a voltage of at least 2.5 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 1.8|2.8 V, this is power management at its best. By operating at a load regulation of 0.001%/mATyp and line regulation of 0.01%/VTyp you can provide a constant voltage at your output. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Newark:
# ANALOG DEVICES ADP220ACBZ-2818R7 LDO Voltage Regulator IC, Fixed, 2 Output, 2.5 V to 5.5 V in, 150 mV drop, 0.2 A out, WLCSP-6
DeviceMart:
IC REG LDO 2.8V/1.8V .2A 6WLCSP
输出接口数 2
输出电流 200 mA
供电电流 220 µA

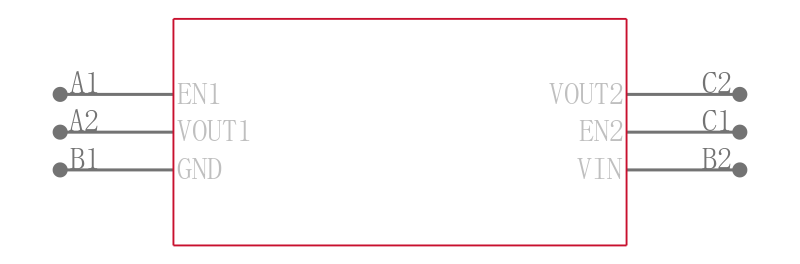

针脚数 6
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 6

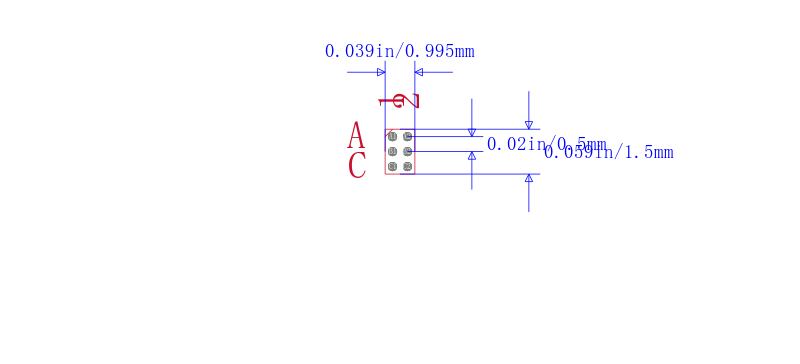

封装 WLCSP-6
封装 WLCSP-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
