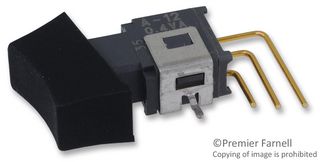

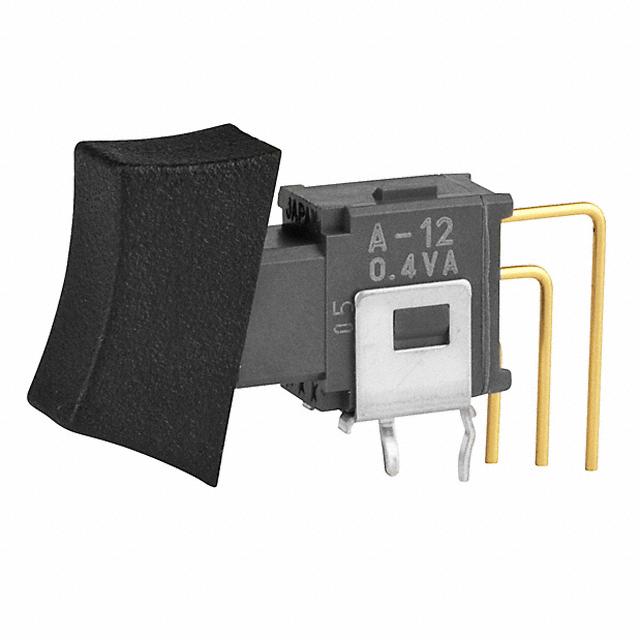

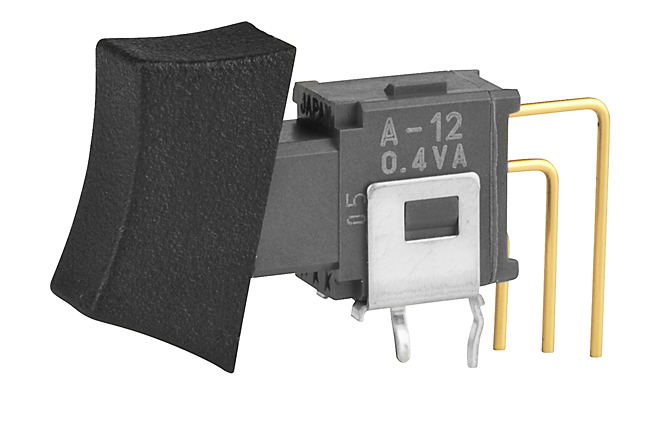

NKK SWITCHES A12K1V1-DA 船型开关, SPDT, 0.1A, 28VAC, 黑色
Implementing this rocker switch from Switches will give the user complete control. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A12K1V1-DA rocker switch panel has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 6.35 mm long, 14.73 mm tall and 26.26 mm deep.
额定电压DC 28 V
接触器类型 Rocker
额定电压AC 28 V
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 -
长度 6.35 mm
宽度 26.26 mm
高度 14.73 mm
封装 -
颜色 Black
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
