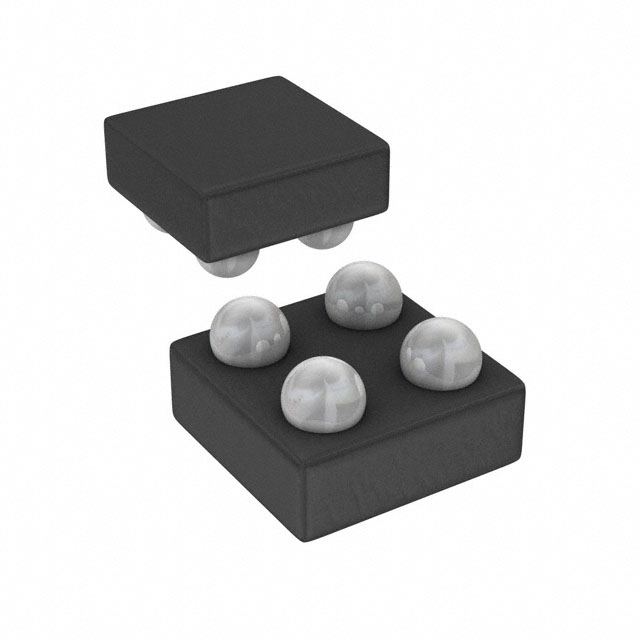

ANALOG DEVICES ADP172ACBZ-1.8-R7 固定电压稳压器, LDO, 1.6V至3.6V, 50mV压差, 1.8V输出, 300mA输出, WLCSP-4
PMIC - 稳压器 - 线性 正 固定 输出 300mA 4-WLCSP(0.95x1.03)
得捷:
IC REG LINEAR 1.8V 300MA 4WLCSP
立创商城:
正 Vin=3.6V Vout=1.8V~1.8V 300mA 73dB
艾睿:
Maintain a steady voltage level with this LDO ADP172ACBZ-1.8-R7 linear regulator from Analog Devices. It has an overall accuracy of 1.5/-2 %. Its typical dropout voltage at current is 0.002@10mA|0.025@150mA|0.05@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. With a small input voltage of 1.6 V and a max of 3.6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 0.001%/mATyp and line regulation of 0.25%/V a constant current can be produced at the output of your circuit. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.007@10mA|0.05@150mA|0.1@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.8V 0.3A 4-Pin WLCSP T/R
Verical:
LDO Regulator Pos 1.8V 0.3A 4-Pin WLCSP T/R
Newark:
# ANALOG DEVICES ADP172ACBZ-1.8-R7 Fixed LDO Voltage Regulator, 1.6V to 3.6V In, 50mV Dropout, 1.8V/300mA Out, WLCSP-4
DeviceMart:
IC REG LDO 1.8V .3A 4WLCSP
Win Source:
IC REG LDO 1.8V 0.3A 4WLCSP
输出接口数 1
输出电压 1.8 V
输出电流 300 mA
供电电流 60µA ~ 0.26µA
针脚数 4
静态电流 0.023 mA
跌落电压 50 mV
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电压Min 1.8 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤3.6 V
安装方式 Surface Mount
引脚数 4

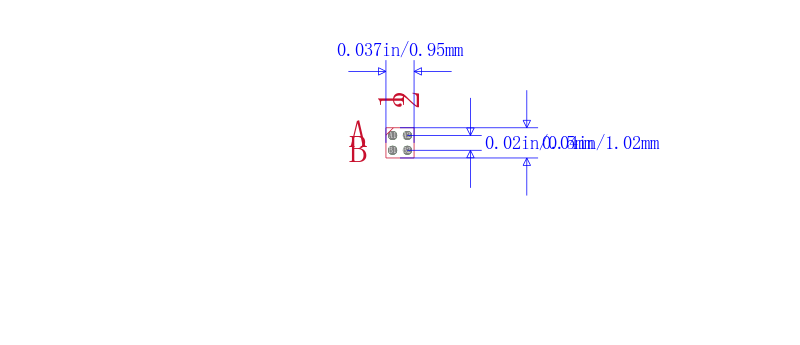

封装 WLCSP-4
宽度 0.95 mm
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP172ACBZ-1.8-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP150ACBZ-1.8-R7 亚德诺 | 类似代替 | ADP172ACBZ-1.8-R7和ADP150ACBZ-1.8-R7的区别 |
ADP121-ACBZ18R7 亚德诺 | 类似代替 | ADP172ACBZ-1.8-R7和ADP121-ACBZ18R7的区别 |
ADP121-ACBZ15R7 亚德诺 | 类似代替 | ADP172ACBZ-1.8-R7和ADP121-ACBZ15R7的区别 |
