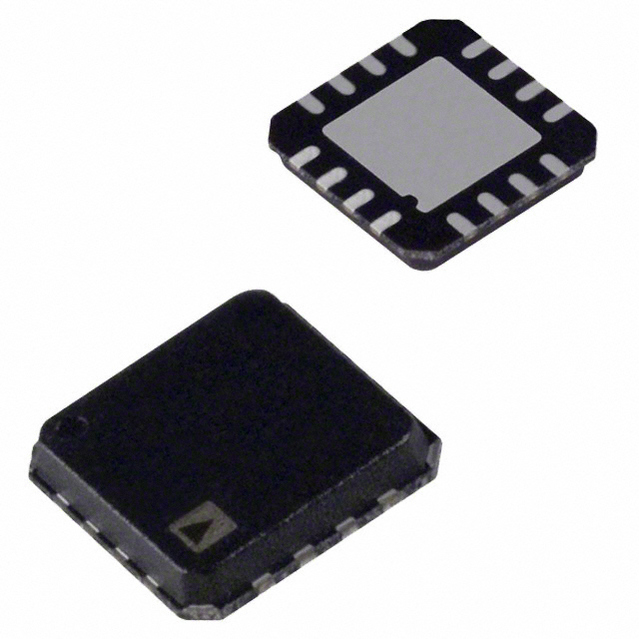

ANALOG DEVICES ADP2105ACPZ-3.3-R7 同步降压开关稳压器, 固定, 2.7V-5.5V输入, 3.3V和1A输出, LFCSP-16
降压 开关稳压器 IC 正 固定 3.3V 1 输出 1A 16-WQFN 裸露焊盘,CSP
得捷:
IC REG BUCK 3.3V 1A 16LFCSP
立创商城:
降压型 Vin=2.7V~5.5V Vout=3.3V 1A
贸泽:
Switching Voltage Regulators 1 Amp Sync Step-Down
艾睿:
Adjust the voltage level of your devices with this step down ADP2105ACPZ-3.3-R7 DC to DC converter from Analog Devices. This converter&s;s single output can produce a current up to 1 A. It only needs a voltage of at least 2.7 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This converter is 97 % efficient. To produce a constant current at your output, supply your circuit with a load regulation of 0.4%/ATyp and line regulation of 0.33%/V. Its switching regulator has a frequency of 1200Typ kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R
Chip1Stop:
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R
Newark:
# ANALOG DEVICES ADP2105ACPZ-3.3-R7 Synchronous Buck Step Down Switching Regulator, Fixed, 2.7V-5.5Vin, 3.3V/1A out, 1.2 MHz, LFCSP-16
DeviceMart:
IC REG BUCK SYNC 3.3V 1A 16LFCSP
输出接口数 1
输出电压 3.3 V
输出电流 1 A
供电电流 30.0 µA
针脚数 16
开关频率 1.2 MHz
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 LFCSP-16
长度 4 mm
宽度 4 mm
高度 0.83 mm
封装 LFCSP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Building Technology, Building Control and Automation, White Goods and Vending
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP2105ACPZ-3.3-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP2105ACPZ-1.2-R7 亚德诺 | 类似代替 | ADP2105ACPZ-3.3-R7和ADP2105ACPZ-1.2-R7的区别 |
ADP2105ACPZ-1.8-R7 亚德诺 | 类似代替 | ADP2105ACPZ-3.3-R7和ADP2105ACPZ-1.8-R7的区别 |
ADP2105ACPZ-R7 亚德诺 | 类似代替 | ADP2105ACPZ-3.3-R7和ADP2105ACPZ-R7的区别 |
