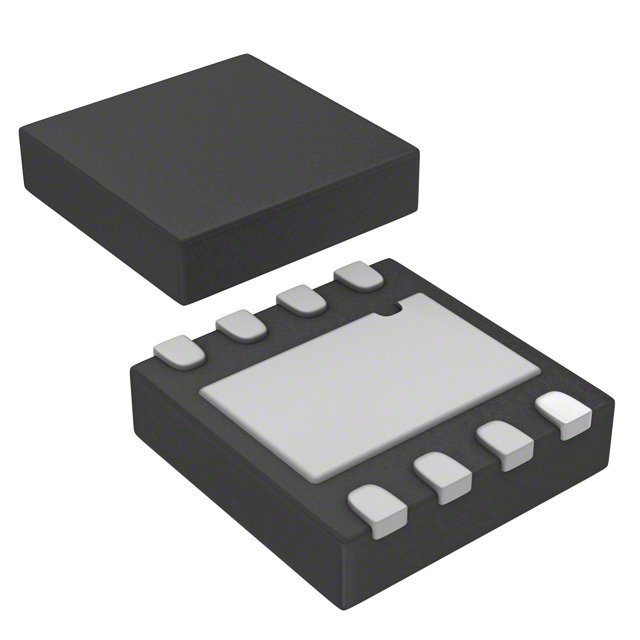

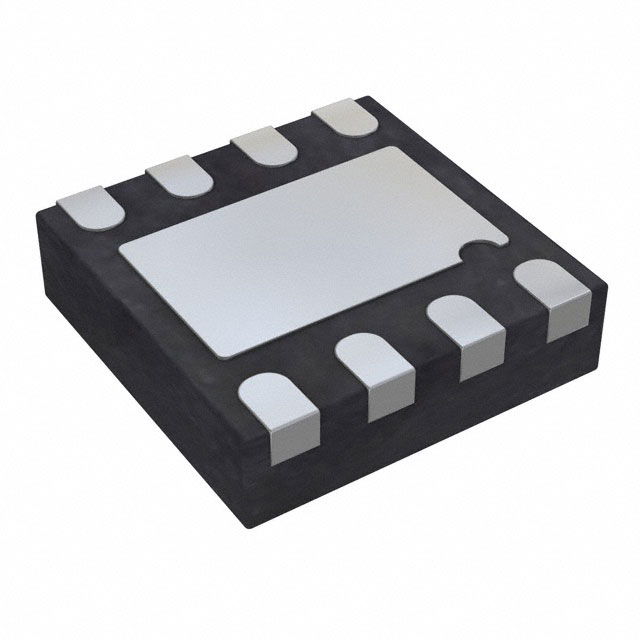

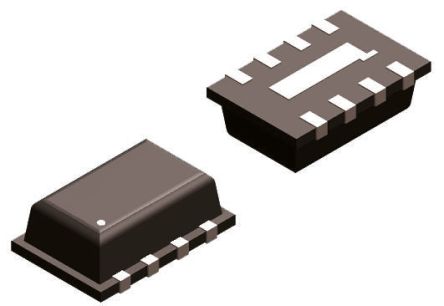

ADP225ACPZ-R7

ANALOG DEVICES  ADP225ACPZ-R7  芯片, 线性稳压器, 双路, 300mA, 8LFCSP

LDO（低压降）线性稳压器，可调输出，Analog Devices

Analog Devices 低压降（LDO）线性调节器提供快速瞬态响应、极佳的线路和负载调节，并且具有宽输入电压范围。

得捷:
IC REG LINEAR POS ADJ 8LFCSP

立创商城:
ADP225ACPZ-R7

欧时:
Analog Devices ADP225ACPZ-R7 双 低噪声低压降稳压器, 可调输出, 0.5 → 5 V输出, 300mA最大输出

贸泽:
Linear Voltage Regulators Dual 300mA Adj Out QOD Lo Noise Hi PSRR

艾睿:
Control the voltage level of your circuit with this LDO ADP225ACPZ-R7 linear regulator from Analog Devices. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.006@10mA|0.17@300mA V. This voltage regulation device&s;s 2 outputs can produce a current up to 0.3 A. This will operate at a minimum voltage of 2.5 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.5 to 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.002%/mA and line regulation of 0.05%/V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.009@10mA|0.26@300mA V.

Chip1Stop:
LDO Regulator Pos 0.5V to 5V 0.3A 8-Pin LFCSP EP T/R

Newark:
# ANALOG DEVICES  ADP225ACPZ-R7  LDO Voltage Regulator IC, Adjustable, 2 Output, 2.5 V to 5.5 V in, 170 mV drop, 0.3 A out, LFCSP-8

DeviceMart:
IC REG LDO ADJ .3A 8-LFCSP
