ANALOG DEVICES ADM6316CY46ARJZ-R7 监控器电路, 手动复位, 低电平有效复位, 1V-5.5V输入, SOT-23-5
The ADM6316 series Supervisory Circuit with watch dog, manual reset and active-low push-pull output. The ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 is a supervisory circuit that monitors power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push button through a manual reset input. The seven devices feature different combinations of watchdog input, manual reset input and output stage configuration. Each device is available in a choice of 26 reset threshold options ranging from 2.5 to 5V in 100mV increments.
- .
- Guaranteed reset output valid to VCC=1V
- .
- Power supply glitch immunity
- .
- Specified over industrial temperature range
- .
- 5µA Low power consumption
电源电压DC 1.00V min
供电电流 0.02 mA
针脚数 5
阈值电压 4.63 V
复位电压Min 4.561 V
复位电压Max 4.699 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5

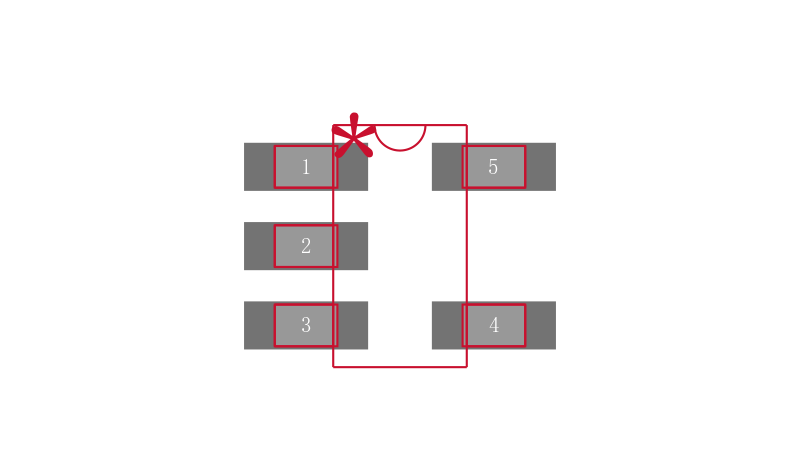

封装 SOT-23-5
宽度 1.6 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, 自动化与过程控制, Sensing & Instrumentation, 电源管理, 便携式器材, Aerospace and Defense, Computers & Computer Peripherals, Power Management, 传感与仪器, Radar, Portable Devices, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6316CY46ARJZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
MAX6316LUK46CY+T 美信 | 类似代替 | ADM6316CY46ARJZ-R7和MAX6316LUK46CY+T的区别 |
MAX6316MUK46CY+T 美信 | 类似代替 | ADM6316CY46ARJZ-R7和MAX6316MUK46CY+T的区别 |
ADM6316CY46ARJ-RL7 亚德诺 | 类似代替 | ADM6316CY46ARJZ-R7和ADM6316CY46ARJ-RL7的区别 |
