ANALOG DEVICES ADM6322C46ARJZ-RL7 监控器电路, 手动复位, 高电平有效, 低电平有效复位, 1V-5.5V输入, SOT-23-5
In the event that a core processor fails in your circuit, the processor from Analog Devices supervisory ensures that there is a backup to take over. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.561 V and a maximum of 4.699 V.
电源电压DC 1.00V min
供电电流 0.02 mA
针脚数 5
阈值电压 4.63 V
复位电压Min 4.561 V
复位电压Max 4.699 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5

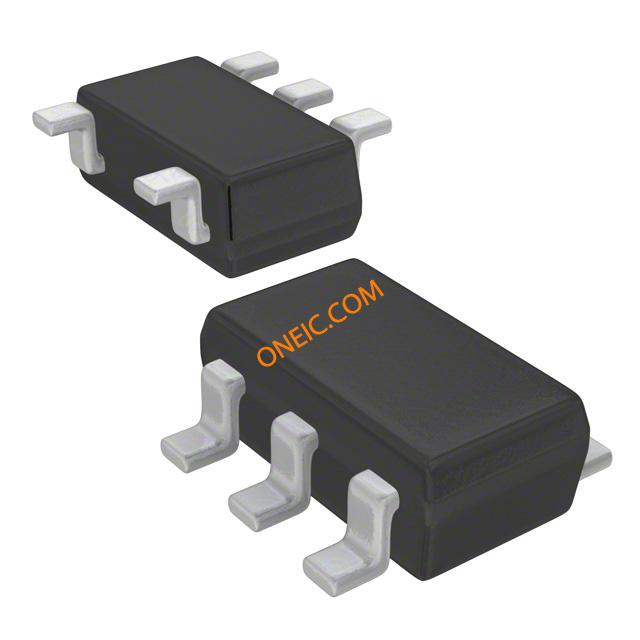

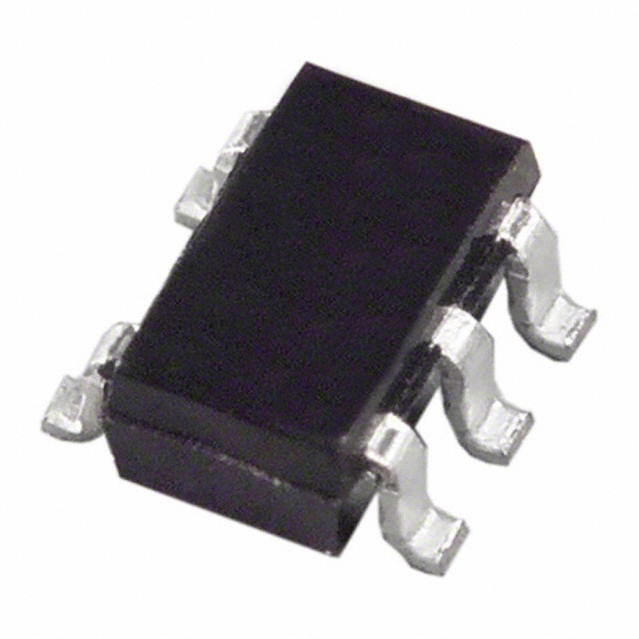

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6322C46ARJZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM8322WC46ARJZR7 亚德诺 | 类似代替 | ADM6322C46ARJZ-RL7和ADM8322WC46ARJZR7的区别 |
ADM6322C46ARJ-RL7 亚德诺 | 类似代替 | ADM6322C46ARJZ-RL7和ADM6322C46ARJ-RL7的区别 |
