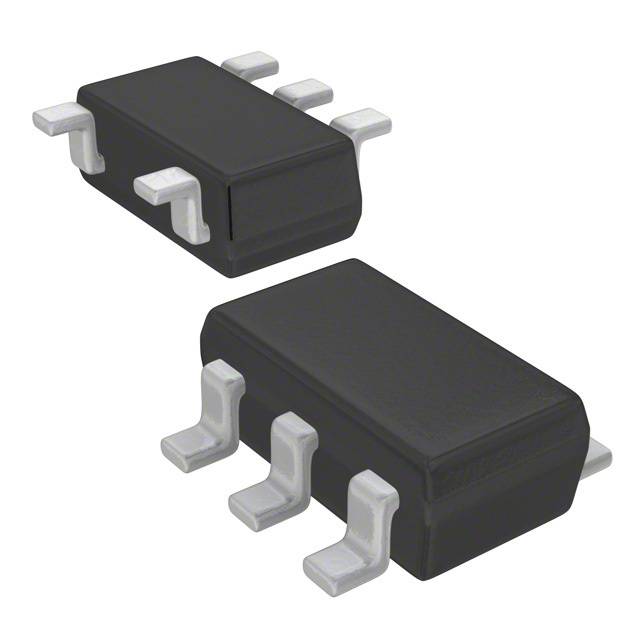

ANALOG DEVICES ADM6316BX46ARJZ-R7 监控器电路, 手动复位, 低电平有效复位, 1V-5.5V输入, SOT-23-5
Your circuit won"t fail if its main processor goes out thanks to this microprocessor supervisory circuit from Analog Devices. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.561 V and a maximum of 4.699 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 1.00V min
供电电流 20.0 µA

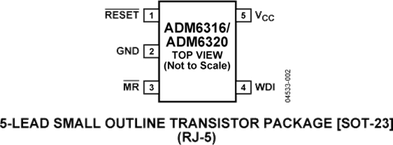

针脚数 5
阈值电压 4.63 V
复位电压Min 4.561 V
复位电压Max 4.699 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5

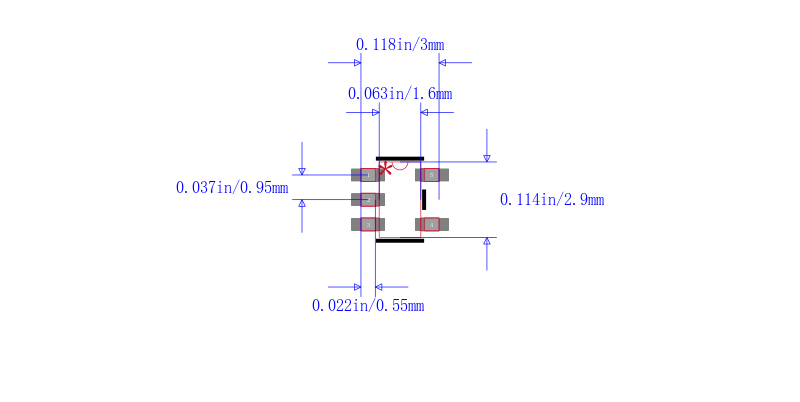

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Aerospace and Defense, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6316BX46ARJZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM6316BX32ARJZ-R7 亚德诺 | 类似代替 | ADM6316BX46ARJZ-R7和ADM6316BX32ARJZ-R7的区别 |
ADM8316WBX46ARJZR7 亚德诺 | 类似代替 | ADM6316BX46ARJZ-R7和ADM8316WBX46ARJZR7的区别 |
