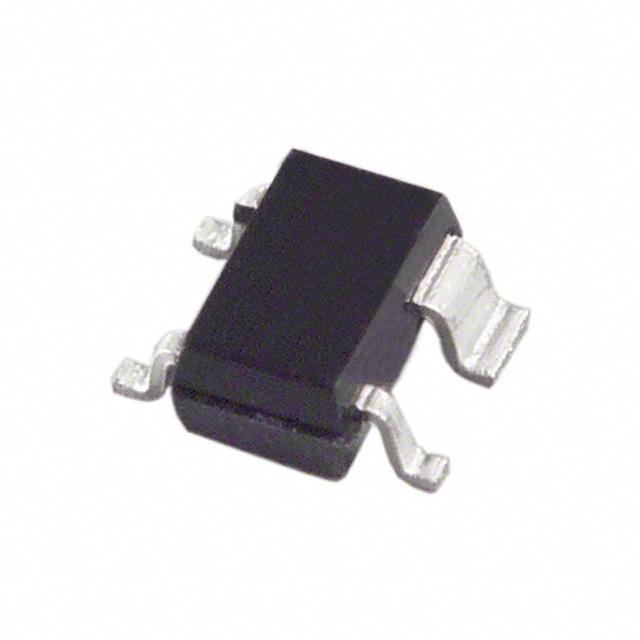

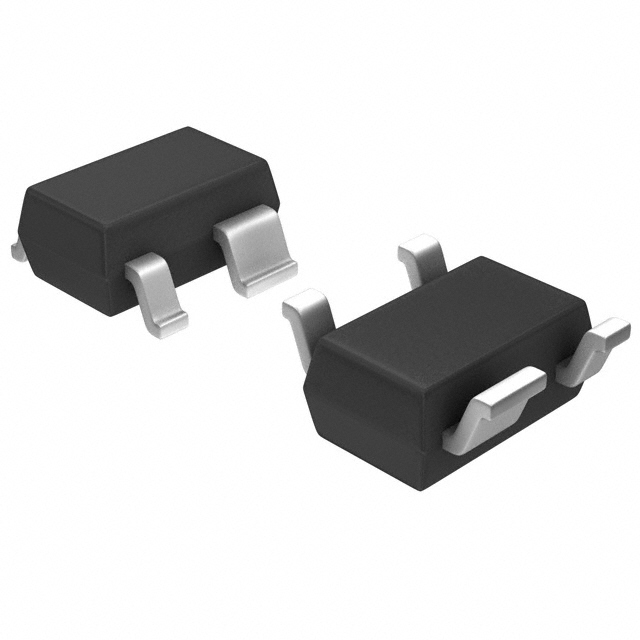

ANALOG DEVICES ADM6711LAKSZ-REEL7 监控器电路, 低电平有效, 推-挽复位, 1.2V-5.5V输入, SC-70-4
Do your circuit"s needs demand a great deal from your processor? The microprocessor supervisory circuit from Analog Devices is the perfect backup solution. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.56 V and a maximum of 4.7 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 5.50V max
供电电流 35.0 µA
针脚数 4
阈值电压 4.63 V
复位电压Min 4.56 V
复位电压Max 4.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 4

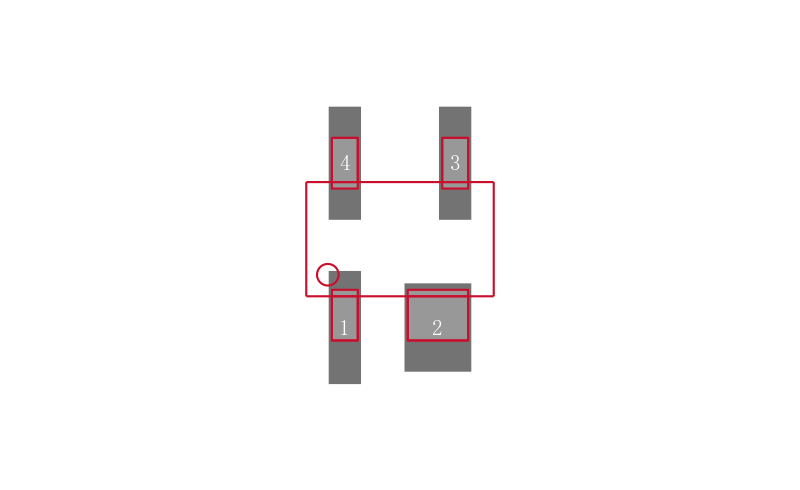

封装 SC-70-4
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-4
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6711LAKSZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADM6711LAKSZ-REEL 亚德诺 | 完全替代 | ADM6711LAKSZ-REEL7和ADM6711LAKSZ-REEL的区别 |
ADM6711LAKS-REEL 亚德诺 | 完全替代 | ADM6711LAKSZ-REEL7和ADM6711LAKS-REEL的区别 |
ADM6713ZAKSZ-REEL7 亚德诺 | 类似代替 | ADM6711LAKSZ-REEL7和ADM6713ZAKSZ-REEL7的区别 |
