ADIS16201/PCBZ

EVALUATION BOARD FOR ADIS16201

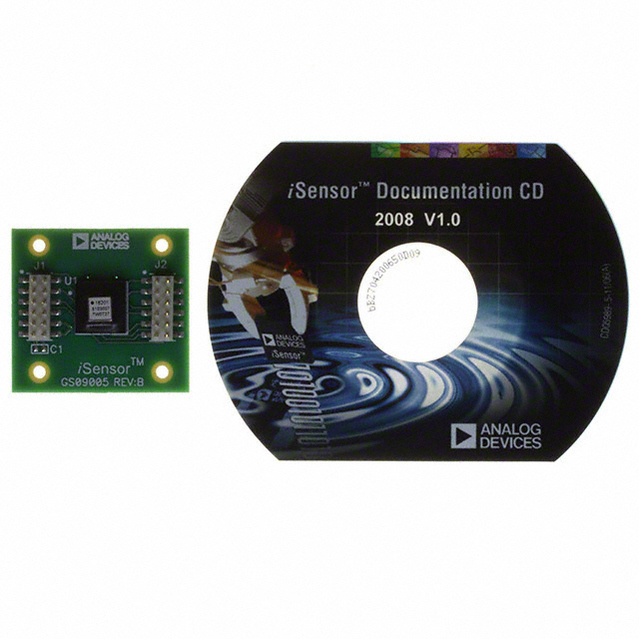

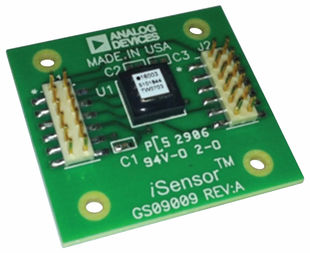

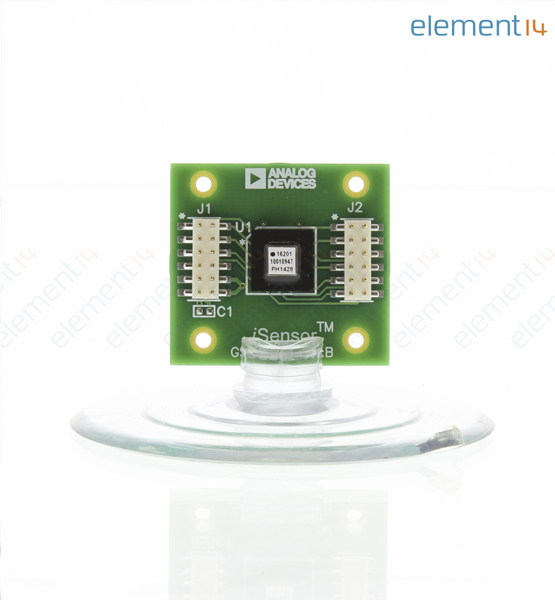

The S16201/PCBZ is a "breakout board" that provides ADIS16201CCCZ and interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16201CCCZ is a fully calibrated, digital MEMS inclinometer, which provides a serial peripheral interface SPI for all digital communications. ADIS16201/PCB evaluation board provides convenient access to the ADIS16201 IC, using a standard 2mm, 2×6, connector interface. The interface PCB provides access to the ADIS16201CCCZ, using dual row, 12pin connectors, which supports standard ribbon cable systems and hand soldering connection techniques. The ADIS1620x/PCB is designed to be evaluated in an existing digital platform such as MCU, DSP, FPGA, PLD or as part of the ADISEVAL system.

.

Easy connectivity and do not support stand alone functionality

.

Dual axis inclinometer/accelerometer measurements

.

12, 14bit digital inclination/acceleration sensor outputs

.

Accelerometer measurement range of +/-1.7g

.

Inclinometer measurement range of +/-90 deg, linear output

.

12bit digital temperature sensor output

.

Digitally controlled sensitivity and bias calibration

.

Digitally controlled sample rate and frequency response

.

Digitally activated self test

.

Dual alarm settings with rate/threshold limits

ESD sensitive device, take proper precaution while handling the device.

ADIS16201/PCB is not reverse polarity protected. Reversing the power supply or applying inappropriate voltages to any pin may damage the ADIS16201/PCB.
