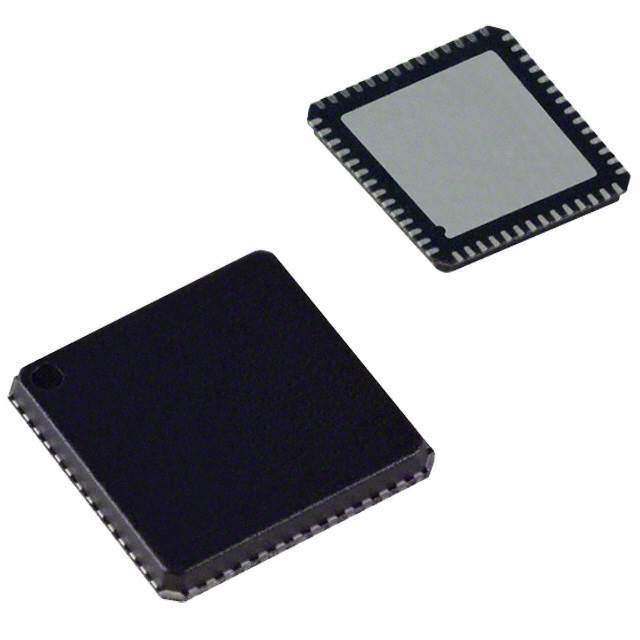

ANALOG DEVICES ADAS1000-2BCPZ 芯片, ECG 模拟前端, LFCSP-56
5 通道 AFE 19 钻头 56-LFCSP-VQ(9x9)
得捷:
IC AFE 5 CHAN 19BIT 56LFCSP
立创商城:
ADAS1000-2BCPZ
贸泽:
Analog Front End - AFE 5 Electrode ECG AFE
艾睿:
AFE General Purpose 5 ADC 19bit 1.8V/3.3V 56-Pin LFCSP EP Tray
安富利:
The ADAS1000-2 measure electro cardiac ECG signals, thoracic impedance, pacing artifacts, and lead-on/lead-off status and output this information in the form of a data frame supplying either lead/vector or electrode data at programmable data rates. Its low power and small size make it suitable for portable, battery-powered applications. The high performance also makes it suitable for higher end diagnostic machines.The ADAS1000 is full-featured, 5-channel ECG including respiration and pace detection, while the ADAS1000-1 offers only ECG channels with no respiration or pace features. Similarly, the ADAS1000-2 is subset of the main device and is configured for gang purposes with only the ECG channels enabled no respiration, pace, or right leg drive.The ADAS1000-2 is designed to simplify the task of acquiring and ensuring quality ECG signals. They provide a low power, small data acquisition system for biopotential applications. Auxiliary features that aid in better quality ECG signal acquisition include multichannel averaged driven lead, selectable reference drive, fast overload recovery, flexible respiration circuitry returning magnitude and phase information, internal pace detection algorithm operating on three leads, and the option of ac or dc lead-off detection. Several digital output options ensure flexibility when monitoring and analyzing signals. Value-added cardiac post processing is executed externally on a DSP, microprocessor, or FPGA.Because ECG systems span different applications, the ADAS1000-2 feature a power/noise scaling architecture where the noise can be reduced at the expense of increasing power consumption. Signal acquisition channels can be shut down to save power. Data rates can be reduced to save power.To ease manufacturing tests and development as well as offer holistic power-up testing, the ADAS1000-2 offer a suite of features, such as dc and ac test excitation via the calibration DAC and cyclic redundancy check CRC redundancy testing, in addition to readback of all relevant register address space.The input structure is a differential amplifier input, thereby allowing users a variety of configuration options to best suit their application.The ADAS1000-2 is available in two package options, a 56-lead LFCSP package and a 64-lead LQFP package. Both packages are specified over a -40°C to +85°C temperature range.
Chip1Stop:
AFE General Purpose 5ADC 19-Bit 1.8V/3.3V 56-Pin LFCSP EP Tray
Verical:
AFE General Purpose 5 ADC 19bit 1.8V/3.3V 56-Pin LFCSP EP Tray
罗切斯特:
N/A
DeviceMart:
IC AFE 19BIT 5CH 56-LFCSP
供电电流 7 mA
通道数 5
针脚数 56
位数 19
耗散功率 41 mW
模数转换数ADC 5
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 3.15 V
安装方式 Surface Mount
引脚数 56
封装 LFCSP-56
封装 LFCSP-56
产品生命周期 Active
包装方式 Tray
制造应用 EEG Measurement, ECG Patient Monitoring, Clinical Monitoring, Healthcare
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADAS1000-2BCPZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADAS1000-2BCPZ-RL 亚德诺 | 完全替代 | ADAS1000-2BCPZ和ADAS1000-2BCPZ-RL的区别 |
