ADIS16080/PCBZ

ANALOG DEVICES  ADIS16080/PCBZ.  评估板, 陀螺仪

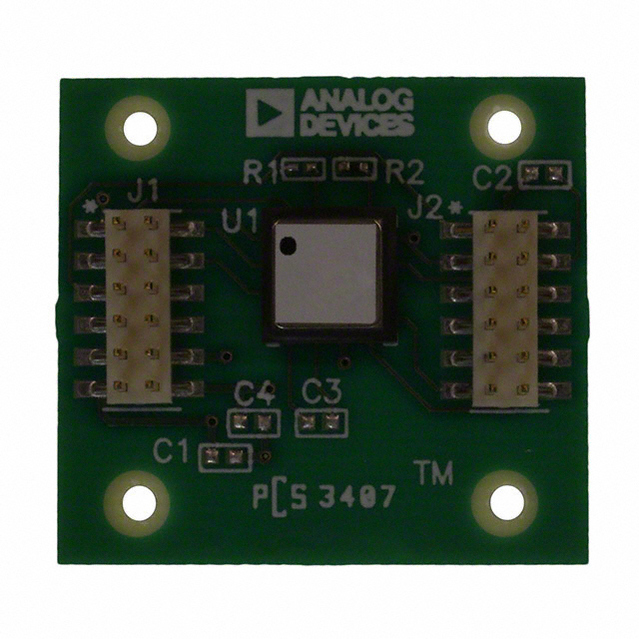

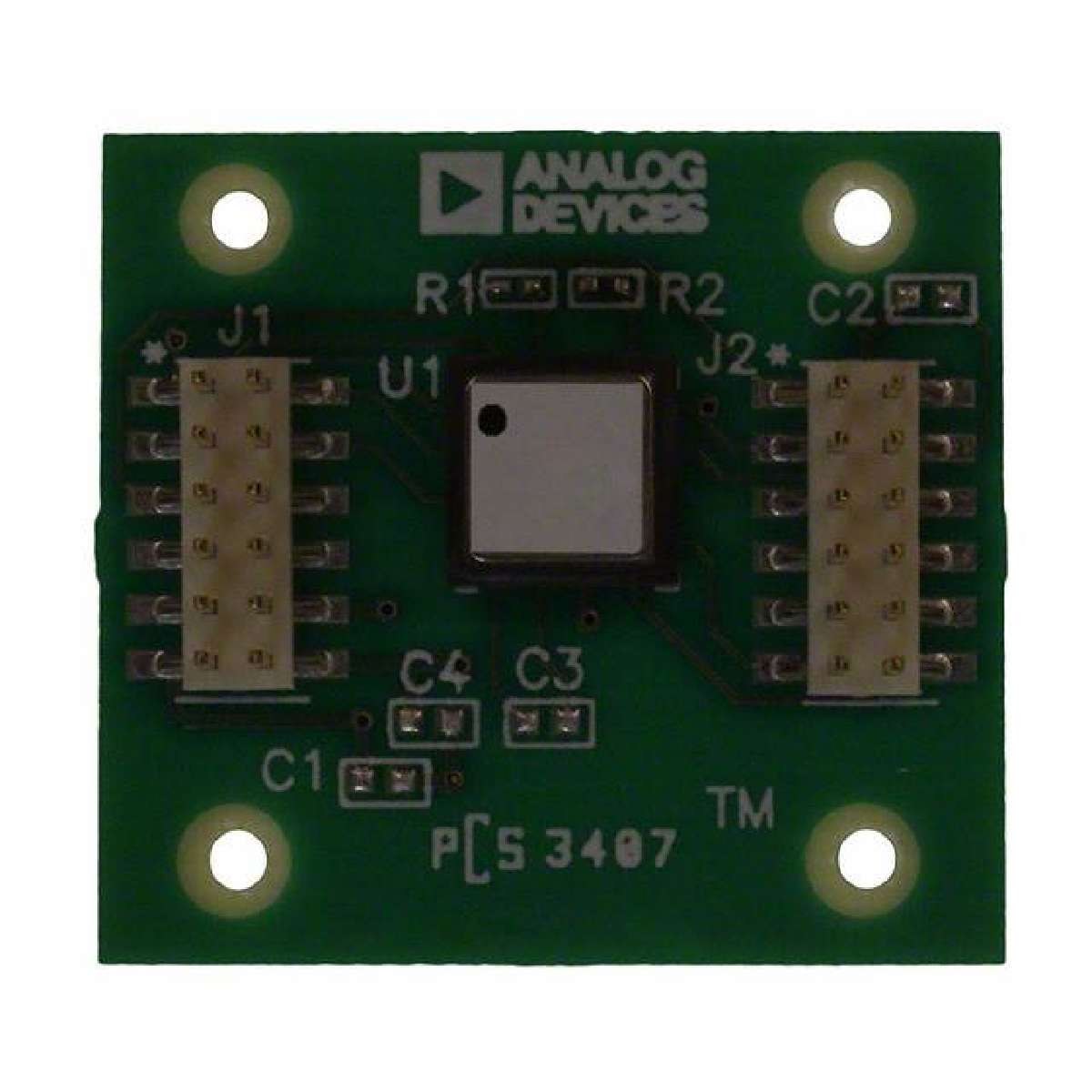

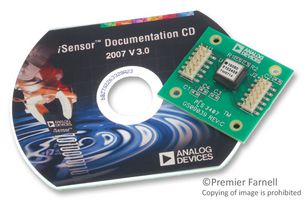

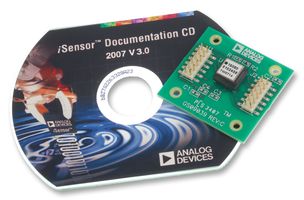

The S16080/PCBZ is a simple evaluation board that provides convenient access to the ADIS16080 using a standard 2mm, 2x6, connector interface. These connectors can be accessed using a variety of cable options, including standard 1mm ribbon cables. The ADIS16080/PCB is designed to be evaluated in an existing digital platform MCU, DSP, FPGA, PLD, etc or as part of the ADISEVAL system. The digital data available at the SPI port is proportional to the angular rate about the axis that is normal to the top surface of the package. The ADIS16080"s digitized outputs can be accessed using the 4 wire serial port interface SPI signals on J1: SCLK, CS, DOUT and DIN. Auxiliary functions, such as the two 12bit ADC inputs, can be accessed using J2. C1 and C4 provide additional filtering for the two different power supply inputs Vdrive and Vcc. The ADIS16080"s reference voltage is filtered by C2.

.

Complete angular rate gyroscope

.

High vibration rejection over wide frequency

.

2000g powered shock survivability

.

Externally controlled self test

.

Internal temperature sensor output

.

Dual auxiliary 12bit ADC inputs

.

Absolute rate output for precision applications

ESD sensitive device, take proper precaution while handling the device.

ADIS16080/PCB is not reverse polarity protected. Reversing the power supply or applying inappropriate voltages to any pin may damage the ADIS16080/PCB.
