ANALOG DEVICES AD9204BCPZ-65 模数转换器, 10 bit, 65 MSPS, 单, 1.7 V, 1.9 V, LFCSP
Analog Devices offers this ADC that will easily convert your continuous analog signals into digital data without altering essential content. This device"s digital interface is parallel|serial spi. It has a differential input signal. This device is based on Pipelined architecture. This ADC has a resolution of 10bit. This ADC has an input voltage of 2 Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电路数 2
通道数 2

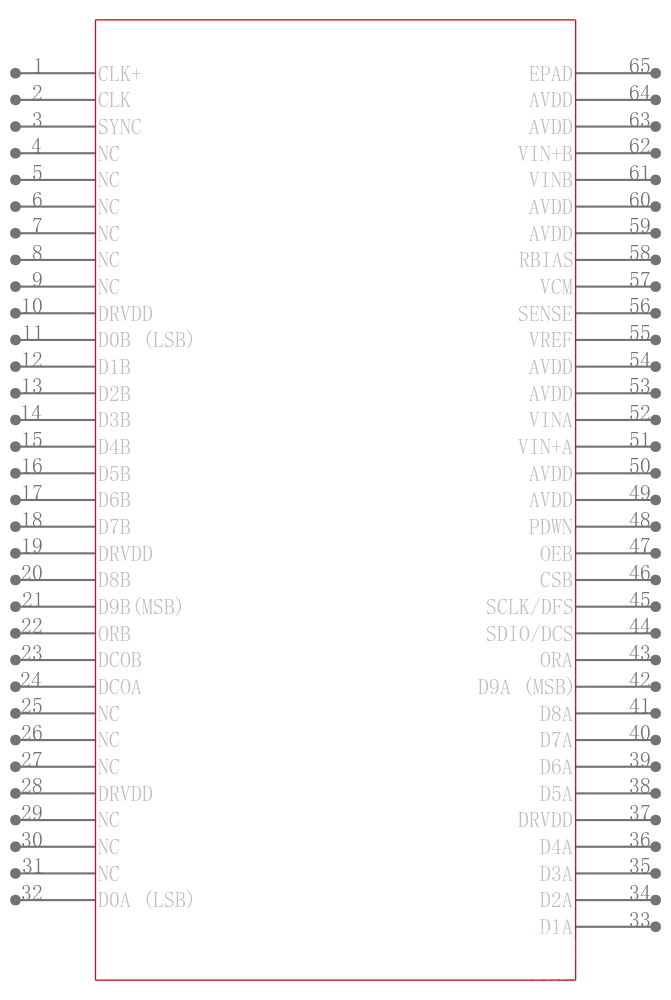

针脚数 64
位数 10
耗散功率 30 mW
采样率 65 Msps
分辨率Bits 10.0
模数转换数ADC 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
输入通道数 2
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 64

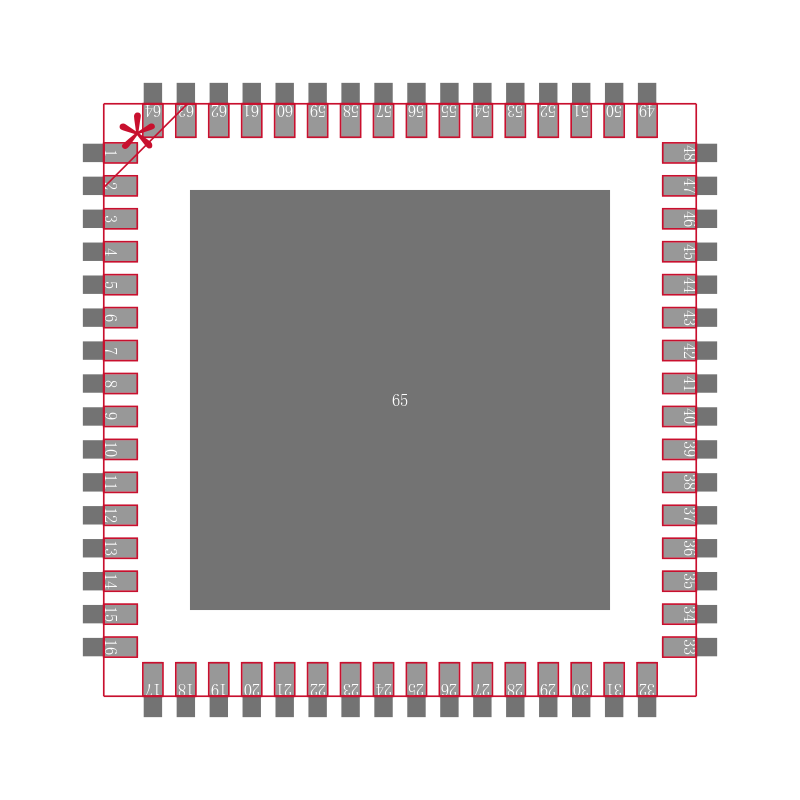

封装 LFCSP-64

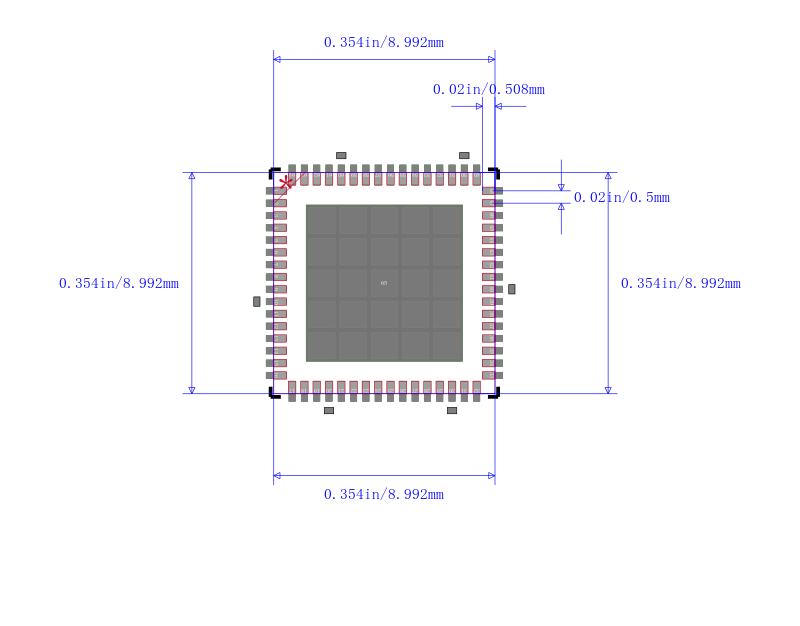

长度 9 mm
宽度 9 mm
高度 0.83 mm
封装 LFCSP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
