ANALOG DEVICES AD7949SCPZ-EP-RL7 模数转换器, 八路, 14 bit, 250 kSPS, 单, 2.3 V, 5.5 V, LFCSP
Product Details
The AD7949 is an 8-channel, 14-bit, charge redistribution successive approximation register SAR analog-to-digital converter ADC that operates from a single power supply, VDD.
The AD7949 contains all components for use in a multichannel, low power data acquisition system, including a true 14-bit SAR ADC with no missing codes; an 8-channel, low crosstalk multiplexer that is useful for configuring the inputs as single-ended with or without ground sense, differential, or bipolar; an internal low drift reference selectable 2.5 V or 4.096 V and buffer; a temperature sensor; a selectable one-pole filter; and a sequencer that is useful when channels are continuously scanned in order.
The AD7949 uses a simple SPI interface for writing to the configuration register and receiving conversion results. The SPI interface uses a separate supply, VIO, which is set to the host logic level. Power dissipation scales with throughput.
The AD7949 is housed in a tiny 20-lead LFCSP with operation specified from −40°C to +85°C.
**Applications**
### Features and Benefits
**AD7949-EP supports defense and aerospace applications AQEC standard**
电源电压DC 2.30V min
电路数 1
通道数 8

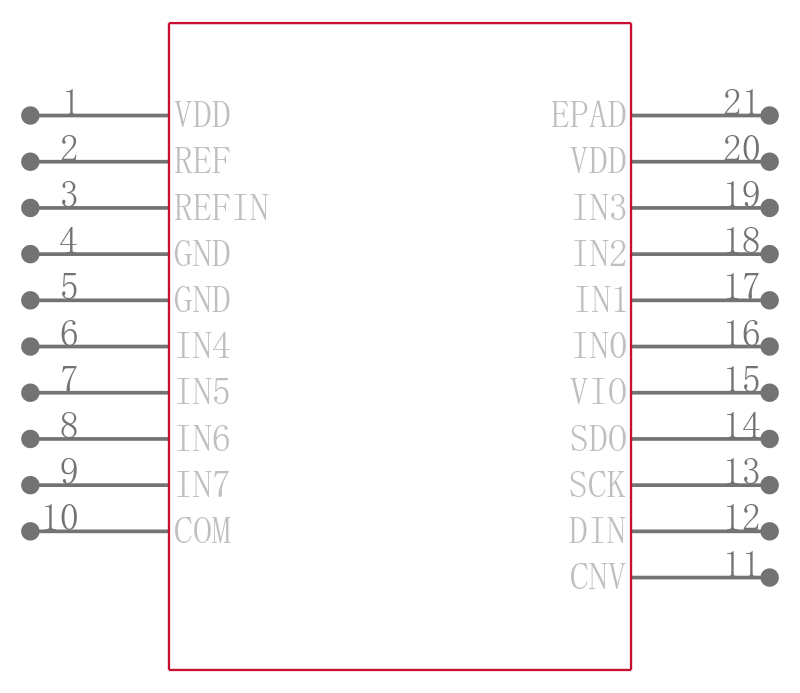

针脚数 20
位数 14
耗散功率 13.5 mW
采样率 250 ksps
分辨率Bits 14.0
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 15.5 mW
输入通道数 4, 8
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 20

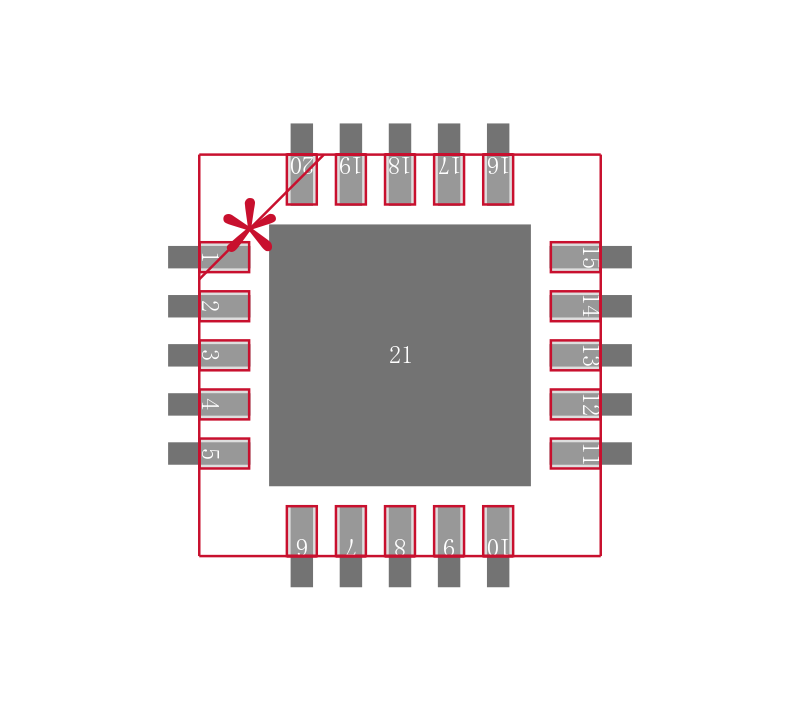

封装 LFCSP-20
封装 LFCSP-20
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Avionics, Aerospace and Defense, Unmanned Systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 3A001.a.2.c
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7949SCPZ-EP-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7949BCPZ 亚德诺 | 类似代替 | AD7949SCPZ-EP-RL7和AD7949BCPZ的区别 |
AD7949BCPZRL7 亚德诺 | 类似代替 | AD7949SCPZ-EP-RL7和AD7949BCPZRL7的区别 |
