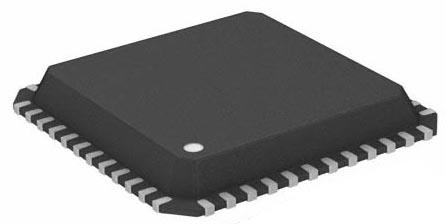

ANALOG DEVICES AD7610BCPZ 模数转换器, 16 bit, 250 kSPS, 单, 4.75 V, 5.25 V, LFCSP
Product Details
The AD7610 is a 16-bit charge redistribution successive approximation register SAR, architecture analog-to-digital converter ADC fabricated on Analog Devices, Inc."s _i_CMOS high voltage process. The device is configured through hardware or via a dedicated write only serial configuration port for input range and operating mode. The AD7610 contains a high speed 16-bit sampling ADC, an internal conversion clock, an internal reference and buffer, error correction circuits, and both serial and parallel system interface ports. A falling edge on CNVST samples the analog input on IN+ with respect to a ground sense, IN−. The AD7610 features four different analog input ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V. Power consumption is scaled linearly with throughput. The device is available in Pb-free 48-lead, low-profile quad flat package LQFP and a lead frame chip-scale LFCSP_VQ package. Operation is specified from −40°C to +85°C.
**Applications**
### Features and Benefits
数字逻辑电平 SAR
电路数 1
通道数 1
针脚数 48
位数 16
耗散功率 90 mW
采样率 250 ksps
功耗 90 mW
分辨率Bits 16.0
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 110 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 48
封装 LFCSP-48
长度 7 mm
宽度 7 mm
高度 0.83 mm
封装 LFCSP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Building Technology, White Goods and Vending
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7610BCPZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD7612BCPZ 亚德诺 | 类似代替 | AD7610BCPZ和AD7612BCPZ的区别 |
AD7610BCPZ-RL 亚德诺 | 类似代替 | AD7610BCPZ和AD7610BCPZ-RL的区别 |
AD7612BCPZ-RL 亚德诺 | 类似代替 | AD7610BCPZ和AD7612BCPZ-RL的区别 |
