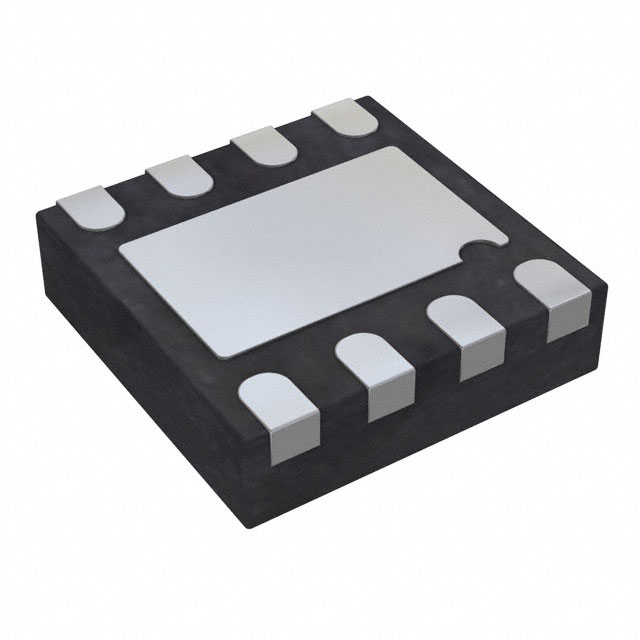

ANALOG DEVICES AD5692RACPZ-RL7 数模转换器, 14 bit, 串行, 2.7V 至 5.5V, LFCSP, 8 引脚
The is a low power 1-channel 14-bit buffered voltage output Digital-to-analog Converter DAC includes an enabled by default internal 2.5V reference, offering 2ppm/°C drift. The output span can be programmed to be 0V to VREF or 0V to 2 x VREF. The device operates from a single 2.7 to 5.5V supply and is guaranteed monotonic by design. The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5691R contains a power-down mode that reduces the current consumption of the device to 2µA maximum at 5V and provides software selectable output loads. It uses an I²C interface. Some device options also include an asynchronous RESET pin and a VLOGIC pin, allowing 1.8V compatibility.
输出接口数 1
通道数 1
针脚数 8
位数 14
工作温度Max 105 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 LFCSP-8
封装 LFCSP-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 自动化与过程控制, Sensing & Instrumentation, 传感与仪器, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
