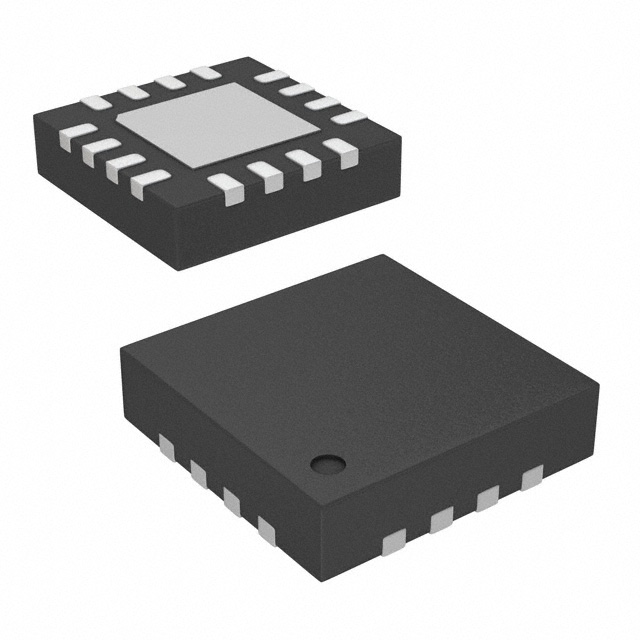

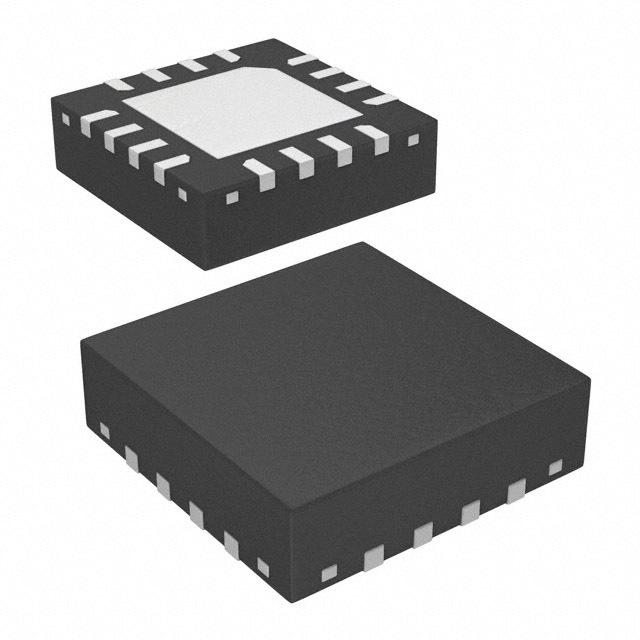

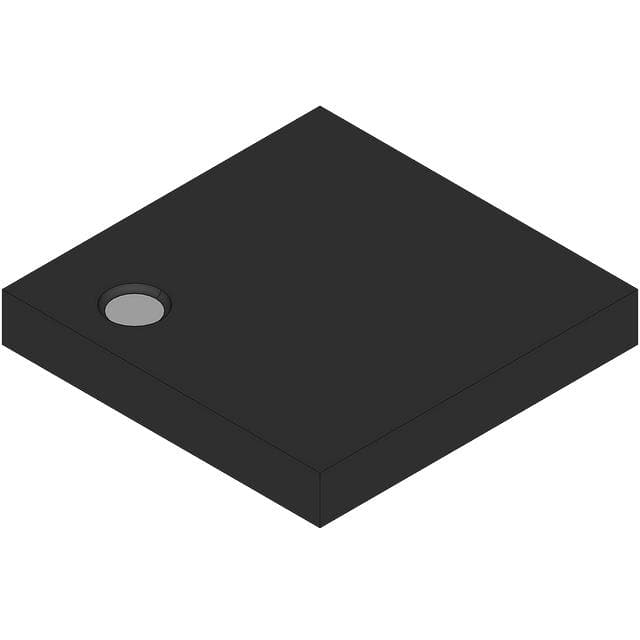

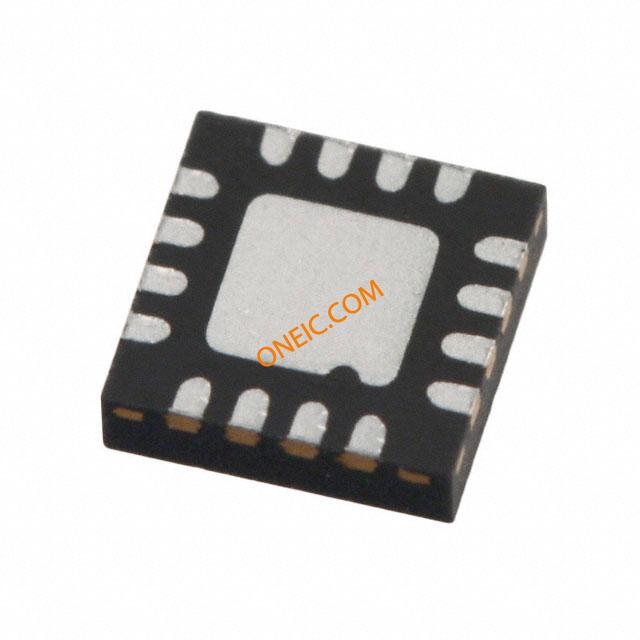

ANALOG DEVICES AD5696ACPZ-RL7 数模转换器, 四路, 16 bit, 串行, 2.7V 至 5.5V, LFCSP, 16 引脚
Product Details
The AD5696, a member of the _nano_DAC+™ family, is a low power, quad, 16-bit buffered voltage output DAC. The device includes a gain select pin giving a full-scale output of 0V to VREF gain = 1 or 0V to 2VREF gain = 2 The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP package and in a TSSOP package.
The AD5696 incorporates a power-on reset circuit and a RSTSEL pin; the RSTSEL pin ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. The part contains a per-channel power-down feature that reduces the current consumption of the device in power-down mode to 4 µA at 3 V.
The AD5696 uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz and includes a VLOGIC pin intended for 1.8 V/3 V/5 V logic.
**Product Hightlights**
1. High Relative Accuracy INL: ±2 LSB maximum
2. Excellent DC Performance:
Total unadjusted error: ±0.1% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.1% of FSR maximum
3. Two Package Options: 3 mm × 3 mm, 16-lead LFCSP and 16-lead TSSOP
**
**Applications**
**
### Features and Benefits
针脚数 16
位数 16
工作温度Max 105 ℃
工作温度Min -40 ℃
数模转换数DAC 4
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 16
封装 LFCSP-16
高度 1.43 mm
封装 LFCSP-16
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
