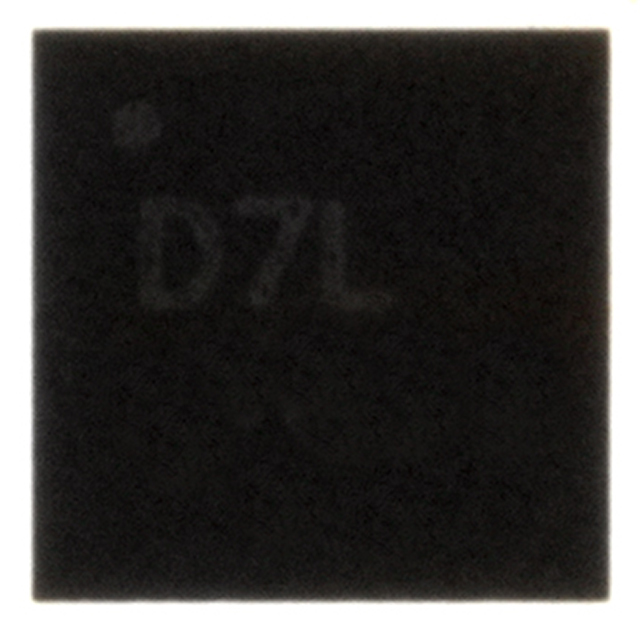

AD5624RBCPZ-3REEL7

ANALOG DEVICES  AD5624RBCPZ-3REEL7  数模转换器, 四路, 12 bit, 287 kSPS, 串行, 2.7V 至 3.6V, LFCSP, 10 引脚

Product Details

The AD5624R/AD5644R/AD5664R, members of the _nano_DAC® family, are low power, quad, 12-/14-/16-bit buffered voltage-out DACs. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.

The AD5624R/AD5644R/AD5664R have an on-chip reference. The AD56x4R-3 has a 1.25 V, 5 ppm/°C reference, giving a full-scale output range of 2.5 V; the AD56x4R-5 has a 2.5 V, 5 ppm/°C reference giving a full-scale output range of 5 V. The on-chip reference is off at power-up, allowing the use of an external refer-ence; all devices can be operated from a single 2.7 V to 5.5 V supply. The internal reference is enabled via a software write.

The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The part contains a per-channel power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode. The low power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment.

The AD5624R/AD5644R/AD5664R use a versatile 3-wire serial interface that operates at clock rates up to 50 MHz, and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing.

**Product Highlights**

1. Quad 12-/14-/16-bit DACs.

2. On-chip 1.25 V/2.5 V, 5 ppm/°C reference.

3. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm, LFCSP_WD.

4. Low power, typically consumes 1.32 mW at 3 V and 2.25 mW at 5 V.

**Applications**

.

Process controls

.

Data acquisition systems

.

Portable battery-powered instruments

.

Digital gain and offset adjustment

.

Programmable voltage and current sources

.

Programmable attenuators

### Features and Benefits

.

Low power, smallest pin-compatible, quad nanoDACs

.

AD5664R: 16 bits

.

AD5644R: 14 bits

.

AD5624R: 12 bits

.

User selectable external or internal reference External reference default On-chip 1.25 V/2.5 V, 5 ppm/°C reference

.

10-lead MSOP and 3 mm × 3 mm LFCSP_WD

.

2.7 V to 5.5 V power supply

.

Guaranteed monotonic by design

.

Power-on reset to zero scale

.

Per channel power-down

.

Serial interface, up to 50 MHz
