ANALOG DEVICES AD5121BCPZ100-RL7 非易失性数字电位器, 100 kohm, 单, I2C, SPI, 线性, ± 8%, 1.8 V
数字电位计(单,100KΩ),Analog Devices
### 数字电位计 - Analog Devices
得捷:
IC DGTL POT 100KOHM 16LFCSP
立创商城:
AD5121BCPZ100-RL7
欧时:
Analog Devices AD5121BCPZ100-RL7 100kΩ 128位置 线性 数字电位计 , 支持多种控制接口, 16引脚
e络盟:
非易失性数字电位器, 100 kohm, 单, I2C, SPI, 线性, ± 8%, 1.8 V
艾睿:
Adjust the resistance with accuracy by using this AD5121BCPZ100-RL7 digital potentiometer from Analog Devices. Its typical dual supply voltage is ±2.5 V, with a minimum of ±2.25 V and maximum of ±2.75 V. This digital potentiometer has a temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device uses one or two power supplies.
Chip1Stop:
Digital Potentiometer 128POS 100KOhm Single 16-Pin LFCSP EP T/R
Verical:
Digital Potentiometer 100kOhm 128POS Non-Volatile 16-Pin LFCSP EP T/R
Newark:
# ANALOG DEVICES AD5121BCPZ100-RL7 Non Volatile Digital Potentiometer, 100 kohm, Single, I2C, SPI, Logarithmic, ± 8%, 1.8 V
罗切斯特:
Digital Potentiometer 128POS 100KOhm Single 16-Pin LFCSP EP T/R
DeviceMart:
IC DGTL POT 100K 1CH 16-LFCSP
电源电压DC 1.80V min
容差 ±8 %
供电电流 0.0007 mA
电路数 1

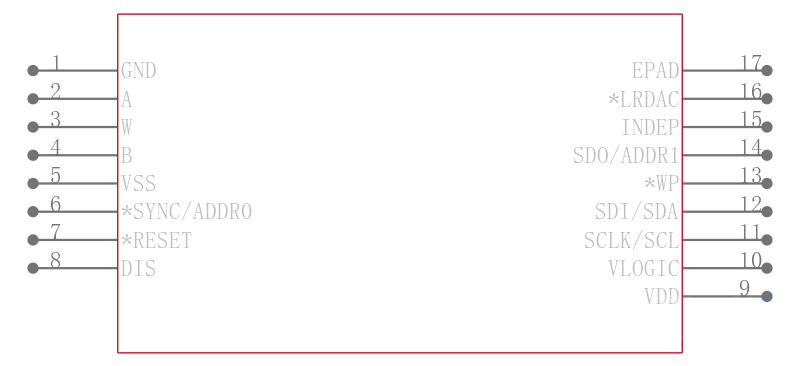

针脚数 16
电阻 100 kΩ
阻值偏差 ±8 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 16

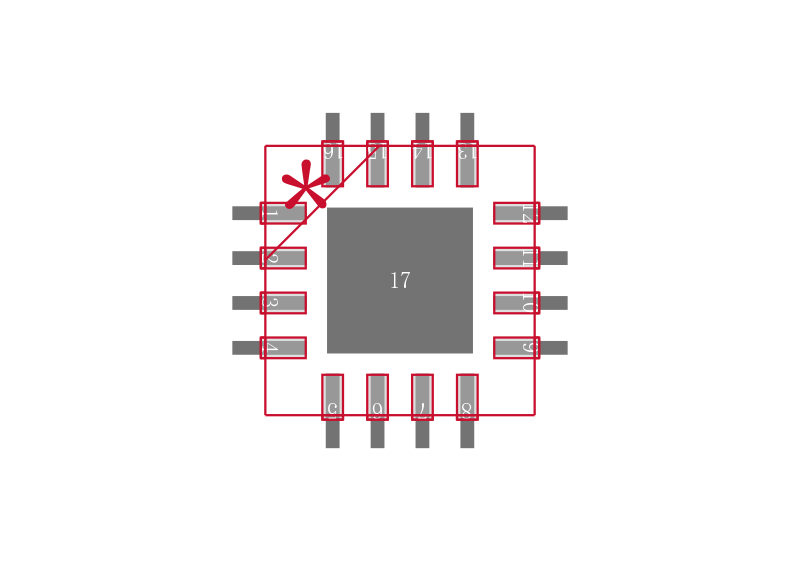

封装 LFCSP-16

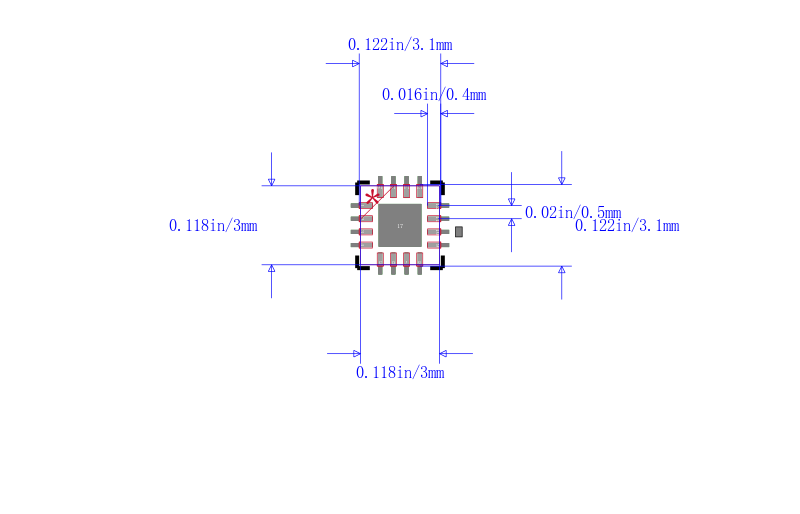

长度 3.1 mm
宽度 3.1 mm
高度 0.75 mm
封装 LFCSP-16
工作温度 -40℃ ~ 125℃
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Stability Control, Autonomous Driving IMU, Security & Chassis, Vision, Head Units, Sensor Interface, RADAR, Crash Sensing, Hybrid Electric Vehicles, Infotainment, LIDAR, Powertrain Body and Chassis, Intelligent Battery Systems, Automotive, Audio Amplifiers, ADAS & Autonomous Driving, MEMS Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
