ANALOG DEVICES AD5144BCPZ100-RL7 非易失性数字电位器, 100 kohm, 四, I2C, SPI, 对数, ± 8%, 2.3 V
100k 欧姆 电路 256 抽头 I²C,SPI 接口 24-LFCSP-WQ(4x4)
得捷:
IC DGTL POT 100KOHM 24LFCSP
立创商城:
AD5144BCPZ100-RL7
e络盟:
ANALOG DEVICES AD5144BCPZ100-RL7 非易失性数字电位器, 100 kohm, 四, I2C, SPI, 对数, ± 8%, 2.3 V
艾睿:
This AD5144BCPZ100-RL7 digital potentiometer from Analog Devices will be incredibly useful when changing the resistance in your application. Its typical dual supply voltage is ±2.5 V, with a minimum of ±2.25 V and maximum of ±2.75 V. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device uses one or two power supplies.
安富利:
Digital Potentiometer 256POS 100KOhm Quad 24-Pin LFCSP EP T/R
Chip1Stop:
Digital Potentiometer 256POS 100KOhm Quad 24-Pin LFCSP EP T/R
Verical:
Digital Potentiometer 100kOhm 256POS Non-Volatile Linear/Log 24-Pin LFCSP EP T/R
容差 ±8 %
供电电流 0.0007 mA
电路数 4
针脚数 256
电阻 100 kΩ
阻值偏差 ±8 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 24

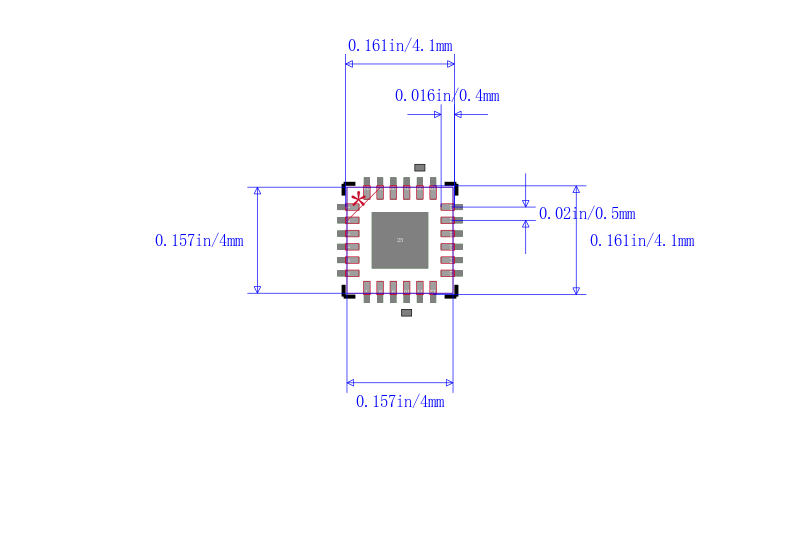

封装 LFCSP-24
封装 LFCSP-24
工作温度 -40℃ ~ 125℃
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
