AD246JY

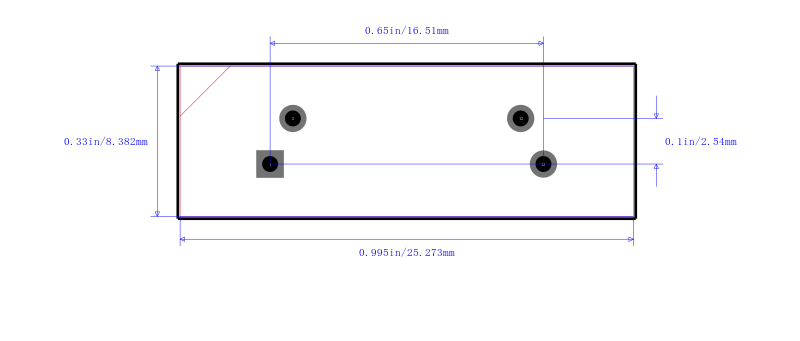

ANALOG DEVICES  AD246JY  芯片, 时钟驱动器, 246J, DIP4, 246

The is a compact Clock Driver used to obtain the required clock from a single 15V supply. It can operate at least 32 AD204s at the rated minimum supply voltage of 14.25V and one additional isolator can be operated for each 40mV increase in supply voltage up to 15V. A supply bypass capacitor is included in the AD246, but if many AD204s are operated from a single AD246, an external bypass connector should be used with a value of at least 1mF for every five isolators used. Place the capacitor as close as possible to the clock driver.

.

Powers up to 32 AD204 or AD208s

.

Plug-in solution saves design time

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
