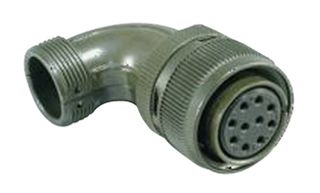

AMPHENOL ACA3108E28-11SB 圆形连接器, ACA-B Series, MIL-DTL-5015 Series Equivalent, 直角插头, 22 触点, 焊接插座, 反向卡口, 28-11
The from is ACA-B series, MIL-DTL-5015 series equivalent right angle plug with 22 contacts. The ACA-B series cylindrical reverse bayonet coupling connectors are environmental & rugged for power and signal applications. These high reliable and low cost connectors uses a unique reverse bayonet coupling system that allows for mating and unmating with a simple 120˚ rotation without compromising shock, vibration or moisture resistance. ACA-B series positive mating connectors are high shock and vibration resistant. They are manufactured in accordance with MIL-DTL-5015 and VG95234 standards. These are intermateable with VG95234 and other reverse bayonet connectors.
- .
- No lockwiring necessary
- .
- UL approved file E115497
- .
- 500+ mating cycles, IP67 and NEMA 4P rated
- .
- Audible, tactile and visual indication of positive coupling
- .
- Operating temperature range from -55°C to +125°C
- .
- Insulation resistance is greater than 5000Mohm at 25°C
- .
- Neoprene insulator and silicone, neoprene or viton seals
- .
- Salt spray exposure of 500hour
- .
- Aluminium alloy body material with olive drab chromate over cadmium plating
- .
- Brass, copper alloy solder socket contacts with silver plating
