ABL1REM24025概述

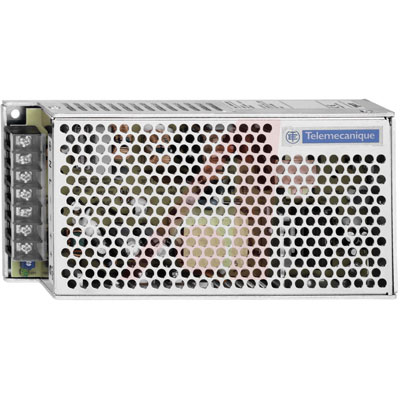

SCHNEIDER ELECTRIC  ABL1REM24025  开放式电源 交流/直流, 开关模式, 固定输出, 100 V, 240 V, 60 W, 24 V, 2.5 A

Designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness.

Applications: Lifts, display panels, escalators, carwash, foodstuff ovens, etc.

* Input voltage: single-phase 100-240 V

* Output voltage: regulated single-phase 12 and 24 VDC / 60-240 W

* Optional anti-harmonics filter conforming to standards IEC/EN 61000-3-2

* Thermal protection incorporated on the entire range

* Connection terminal block protection

* UL CSA certification

* Protection against overloads, short-circuits and overvoltages

* Fixing by screw or on 35 mm rail as option

ABL1REM24025中文资料参数规格
技术参数

输出接口数 1

输出电压 24 VDC

输出电流 2.5 A

输出功率 60 W

输入电压Max 240 V

输入电压Min 100 V

输入电压AC Max 240 v

输入电压AC Min 100 v

输出电流Max 2.5 A

输出功率Max 60 W

输入电压 85VAC ~ 264VAC

外形尺寸

长度 150.11 mm

宽度 38.1 mm

高度 98.04 mm

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

数据手册

在线购买ABL1REM24025
型号: ABL1REM24025
制造商: Schneider Electric 施耐德
描述:SCHNEIDER ELECTRIC  ABL1REM24025  开放式电源 交流/直流, 开关模式, 固定输出, 100 V, 240 V, 60 W, 24 V, 2.5 A
