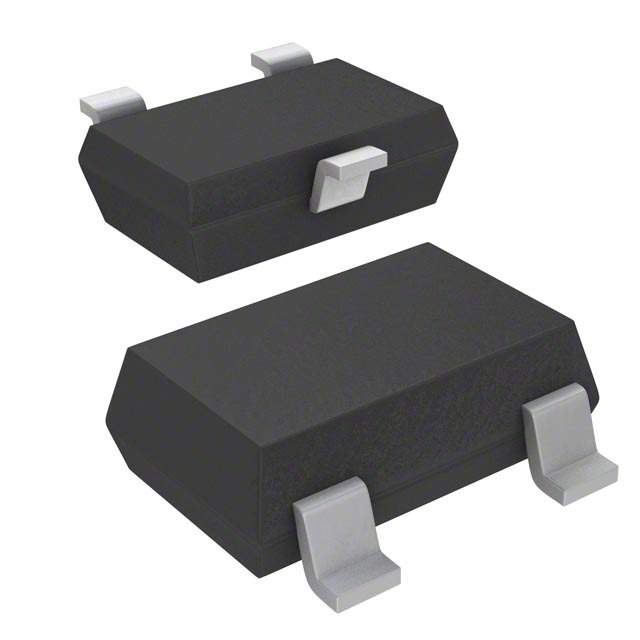

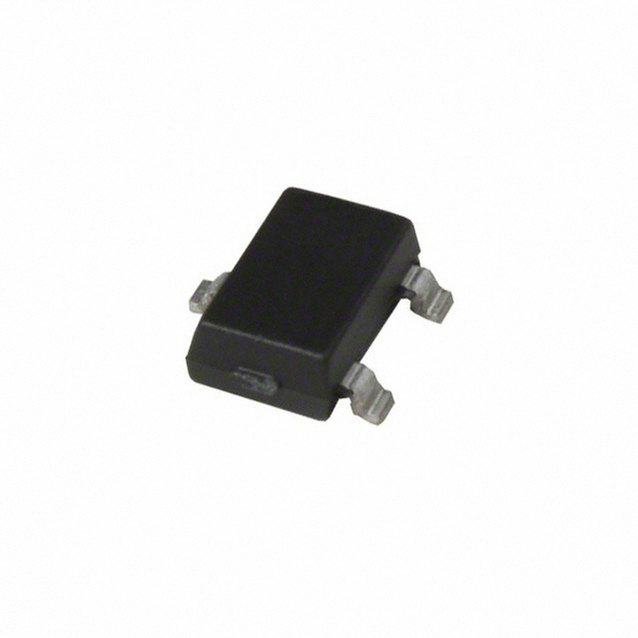

Hall Effect Sensor 25mA Bipolar 5V/9V/12V/15V/18V Automotive 3Pin SOT-23W T/R
Description
The Allegro® A1201, A1202, A1203, and A1204 Hall-effect bipolar switches are next-generation replacements and extension of the popular Allegro A3134, A3133, and A3132 bipolar switch product line. Overall, the A120x family, produced with BiCMOS technology, consists of continuous-time devices that feature fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switchpoint accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and low offset amplifiers help to minimize noise and to reduce the residual offset voltage normally caused by device overmolding, temperature excursions, and thermal stress.
Features and Benefits
▪ Continuous-time operation
▫ Fast power-on time
▫ Low noise
▪ Stable operation over full operating temperature range
▪ Reverse battery protection
▪ Solid-state reliability
▪ Factory-programmed at end-of-line for optimum performance
▪ Robust EMC performance
▪ High ESD rating
▪ Regulator stability without a bypass capacitor
